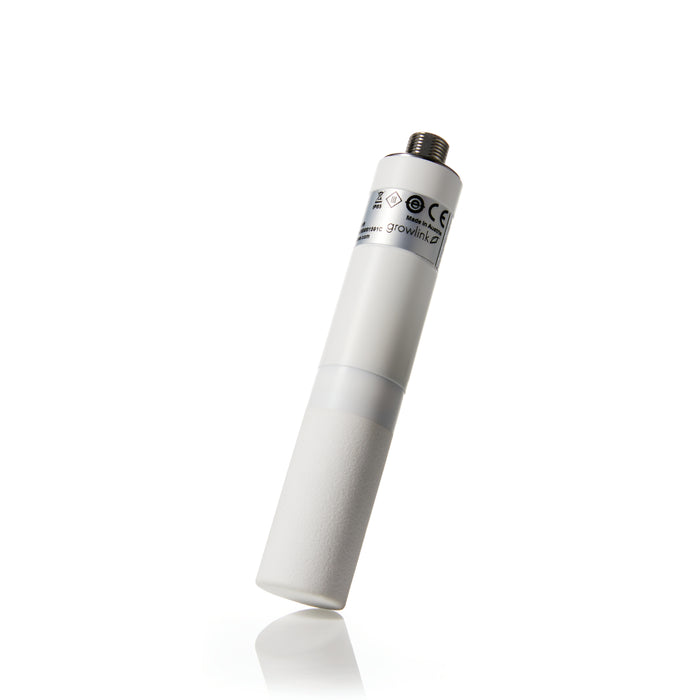

Growlink ESM2 Pro Climate Sensor

The Modular 4 in 1 Probe for CO2, Humidity, Temperature and VPD from Growlink is a highly versatile sensor that provides accurate and reliable measurements of environmental conditions. Designed for use specifically for CEA.

Compatible with Core & Connect Controllers.

Features

• With the Growlink ESM-2, monitor Temperature, Humidity, CO2. VPD.
• Send alerts to smart devices or PC utilizing the Growlink interface.
• Can be used as a general sensor to monitor room conditions or, can be used in conjunction with Growlink environmental control panels.
• Hardwired for dependable communication.

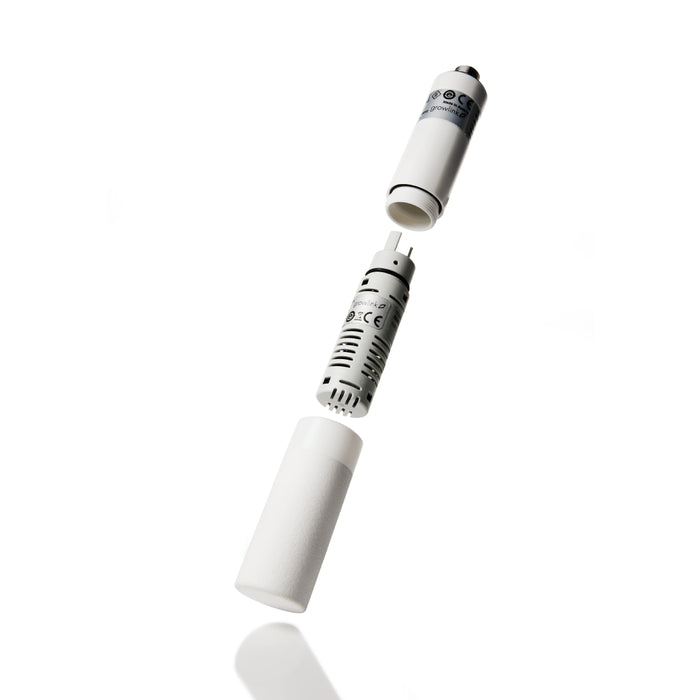

• Sensor filter can be easily removed for cleaning/replacement.
• MSTP communication protocol.

Benefits

• Connectivity Simplified: Through hardwired communication via BACnet MS/TP, the ESM2 ensures effective connectivity enabling efficient data exchange and control.
• Durable Defense: The IP65 enclosure exhibits durability and offers protection against various environmental factors.
• Sensor Integration: Link multiple sensors to a singular controller for streamlined
  monitoring and control.

Specifications

CO2

• Measuring Range: 0...5000 ppm
• Accuracy: ± (50 ppm + 3% mv*)

Relative Humidity

• Measuring Range: 0...95% RH (non-condensing)
• Accuracy @ 25°C (77°F): 20...80% RH: ± 3% RH 0...95% RH: ± 5% RH

Temperature

• Measuring Range: -40...60 °C (-40...140 °F)
• Accuracy in the range of 5...60 °C (41...140 °F): ± 0.5 °C (± 0.9 °F)

Pressure

• Measuring Range: 700...1100 mbar (10.15...15.95 psi)
• Accuracy @ 25°C (77°F): ± 2 mbar

Output:

• BACnet MS/TP

Supply:

• 12-30 VDC (voltage / RS485)

What's In The Box

Note: Each ESM-2 possesses a unique MAC address. The designated room, chain position and MAC address is printed on each ESM-2 box and must be strictly adhered to. MAC addresses for ESM-2s always start at “65”. This is the 1st sensor in the chain and is to be installed at the 1st connector cable in the room closest to the Growlink panel.

• ESM-2
• RS485 Communication Wire
