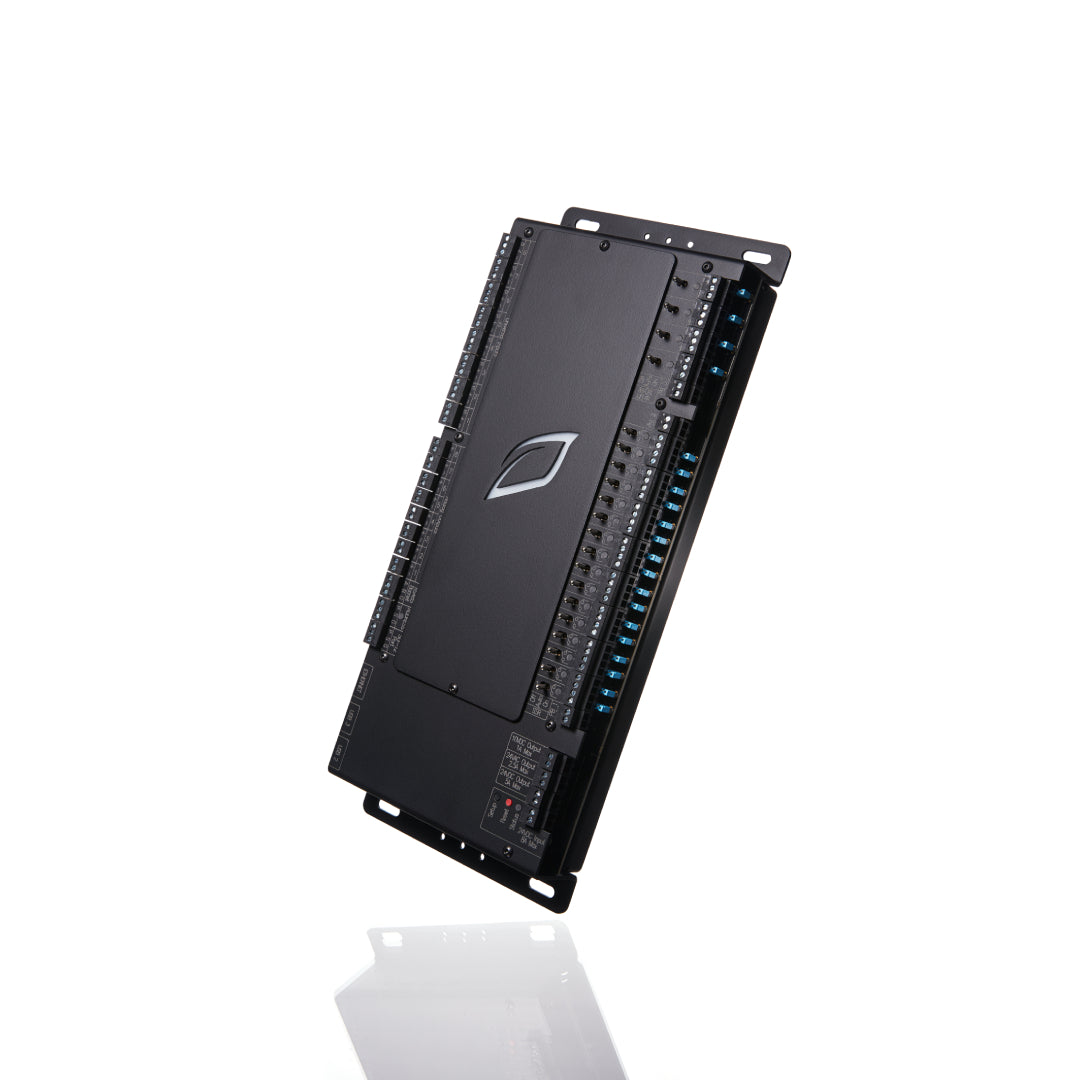

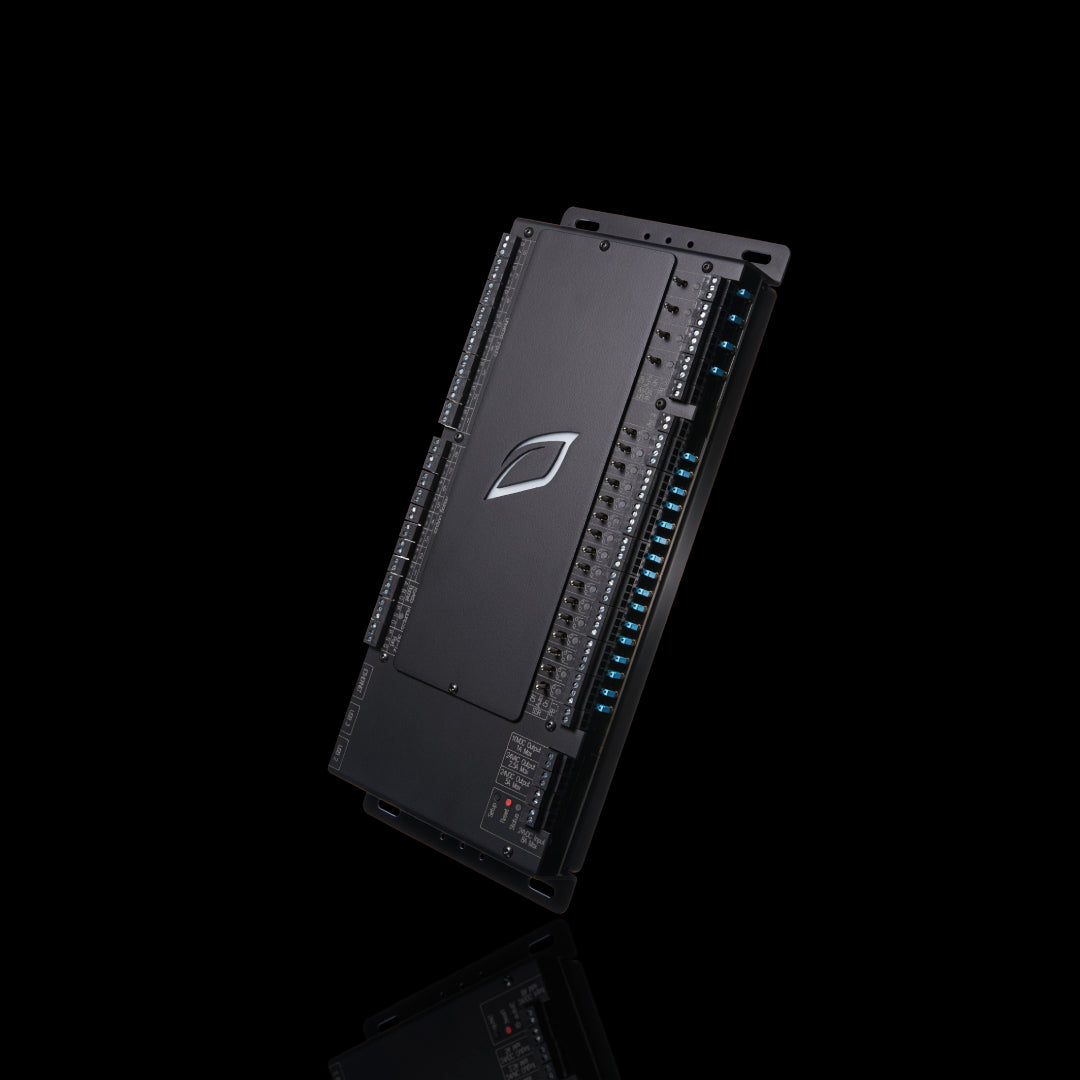

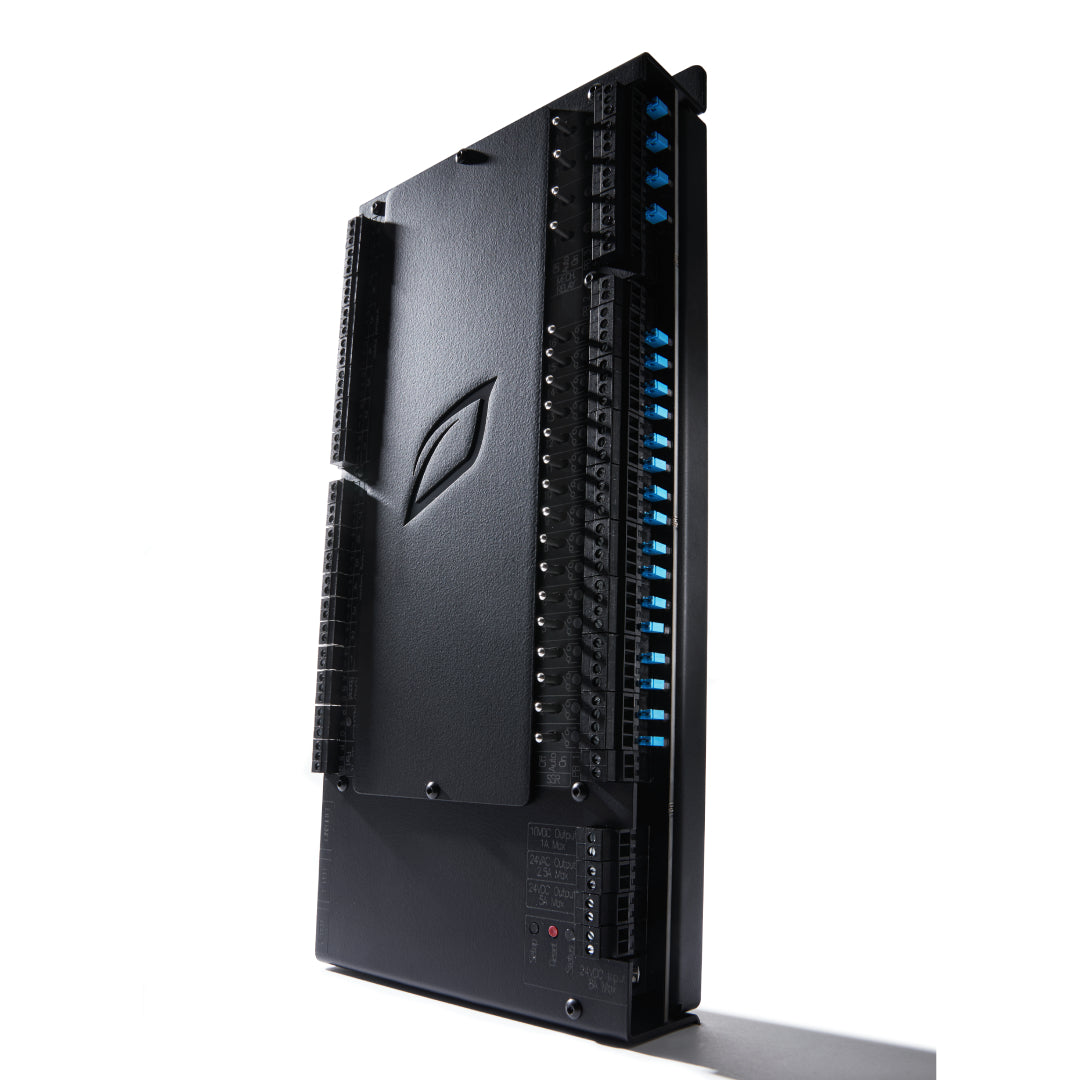

Growlink All-In-One Connect Controller

Connect gives cultivators the power to unify irrigation, climate and lighting management all into one system. Rather than needing separate controllers and apps for each part of your operation, bring every device and sensor together with Growlink to reduce cost and time spent switching between different platforms. Smart lighting, Al backed irrigation, advanced Blueprints and many other advanced features make this controller the most feature packed unit available for both greenhouse and indoor growers.

Features

• Smart Lighting (DLI, Throttling)
• Automatic Remote Firmware Updates
• API Interface
• SDI-12 Support
• Remote Access
• Advanced Reporting
• Expandable with Metz IO
• BACnet MS/TP & IP Support

Benefits

• Feature Packed Software: Capable of utilizing Copilot, Blueprints and all Growlink OS2 features.
• Full Room Control: Facilitating light dimming, HVAC, dehumidification, CO2 management, irrigation and more...
• Built for Expansion: Equipped to integrate 3rd party sensors such as PAR leaf temperature, level sensors and more...

Equipment Interface

Sensor Interface:

• ESM2 Climate Sensor
• Terralink Substrate Sensor
• PAR Sensor
• Weather Station
• Flow Meter*
• 3rd Party 4-20 mA Sensors
• 3rd Party BACnet Sensors
• 3rd Party SDI-12 Sensors
• Requires Metz Expansion Module

Equipment Interface:

• HVAC Set Points
• Fans
• Unit Heaters
• Humidifiers, Dehumidifiers
• CO2 Solenoid Valves
• Irrigation Solenoid Valves
• Anderson Pumpers
• BACnet Industrial Equipment
• Lighting on/off, dimming, DLI, Throttling

Specifications

Power Requirements

• 110-240VAC for provided power supply. Check power configuration for your country before powering on equipment.
• Controller accepts 24VDC and must use provided power supply.

Temperature

• Max Operating Temperature: 131°F (55°C)
• Onboard Voltage Outputs
• 24VAC Maximum: 2.5A
• 24VDC Maximum: 5A
• 10VDC Maximum: 1A

Network Connections

• (x1) Ethernet Port (RJ45)
• (x3) Power Bus
  • Maximum Amperage per Bus: 3A
  • Maximum AC Voltage: 38VAC
  • Maximum DC Voltage: 48VDC
• (x16) Solid State Relays (SSR)

  • Maximum Amperage: 3A
  • Maximum AC Voltage: 38VAC
  • Maximum DC Voltage: 48VDC
  • Cycle Life: Near Infinite
  • Max Terminal Wire Gauge: 12AWG (2.05mm)
• (x4) Mechanical Relays

  • Maximum Amperage: 3A
  • Maximum AC Voltage: 38VAC
  • Maximum DC Voltage: 48VDC
  • Estimated Cycle Life: 100,000 Mechanical Cycles
  • Max Terminal Wire Gauge: 12AWG (2.05mm)
• (x8) Analog Outputs

  • 0-10VDC Output for Dimming Zone and General Control
  • Max current per channel:200mA
  • Max Terminal Wire Gauge: 12AWG (2.05mm)
• (x8) Universal Inputs (UI)

  • Maximum Voltage: 24VDC (Do not connect AC voltage)
  • Signals Recognized:

    • 4-20mA
    • 0-10VDC
    • 470-500kΩ Resistive Inputs
  • Digital Inputs (3V DC Threshold for On/Off)
  • Max Terminal Wire Gauge: 12AWG (2.05mm)
• (x1) SDI-12 Channel
  • 12VDC Output – 750mA Max
  • Max SDI-12 Device Count: 36
  • Addresses 0-9, and A-Z (Uppercase)
  • Max Terminal Wire Gauge: 12AWG (2.05mm)
• (x1) RS485 Serial Port
• For BACnet MS/TP Communications only
• Max Terminal Wire Gauge: 12AWG (2.05mm)

Dimensions

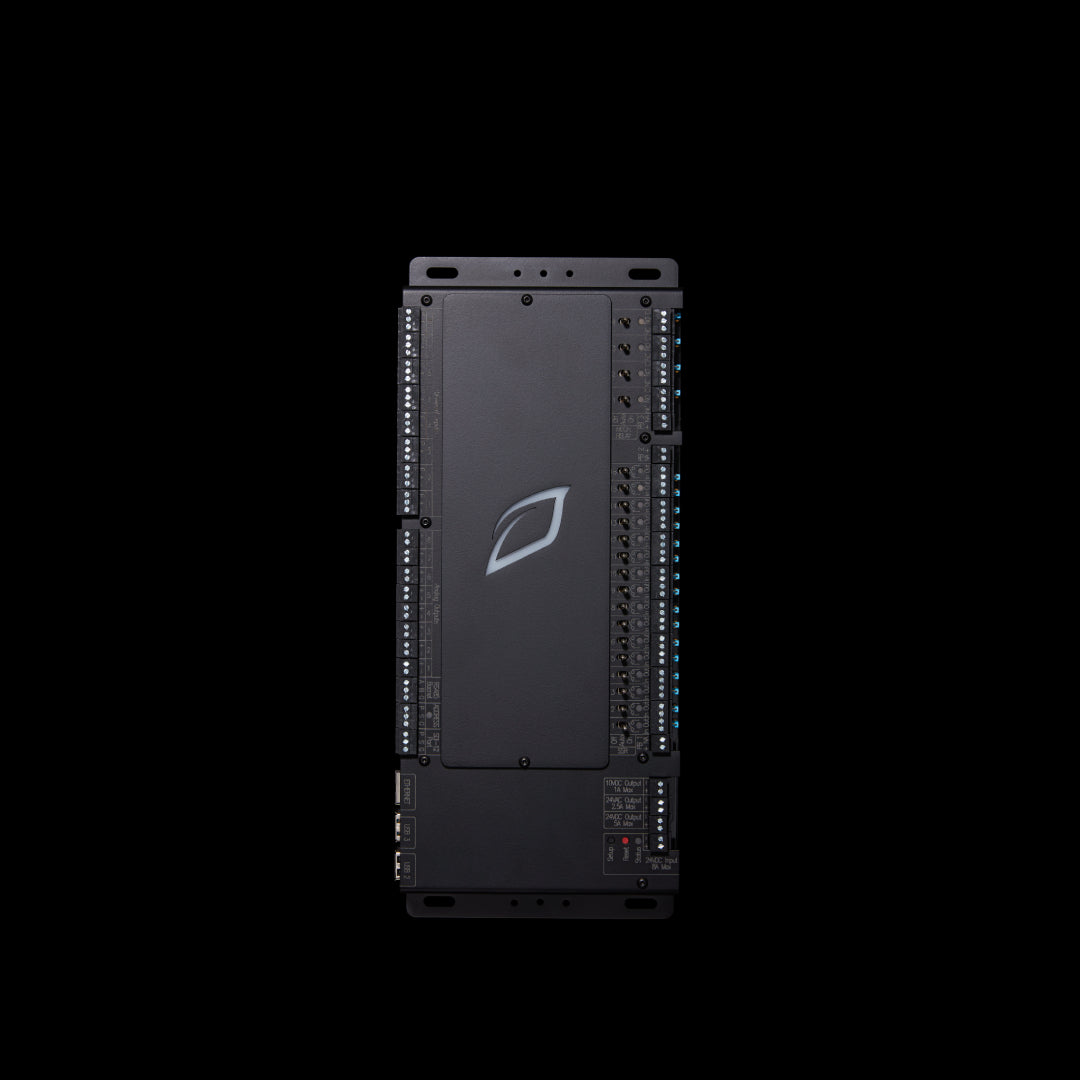

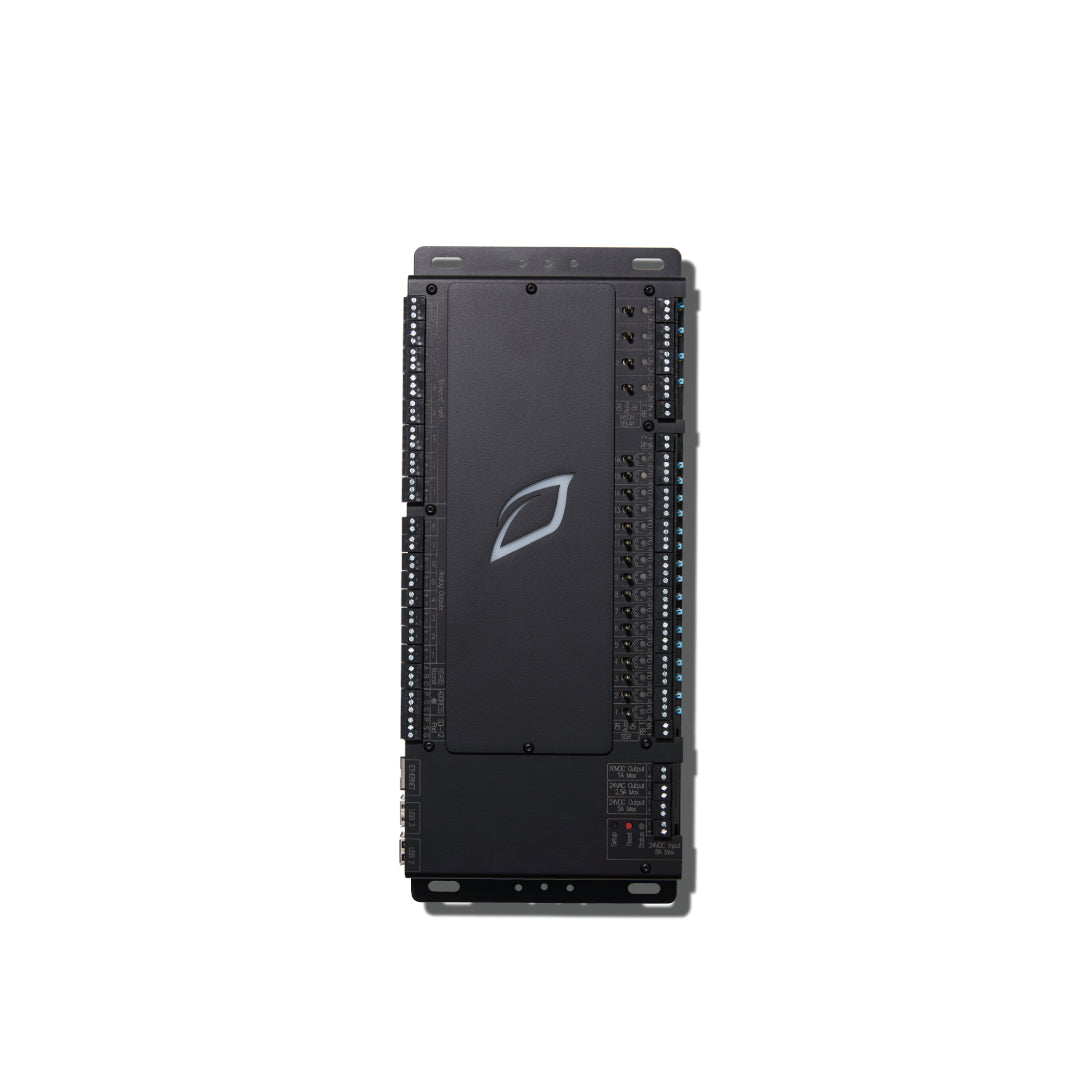

• Controller Only: 12.5” x 5.25” x 1.75”

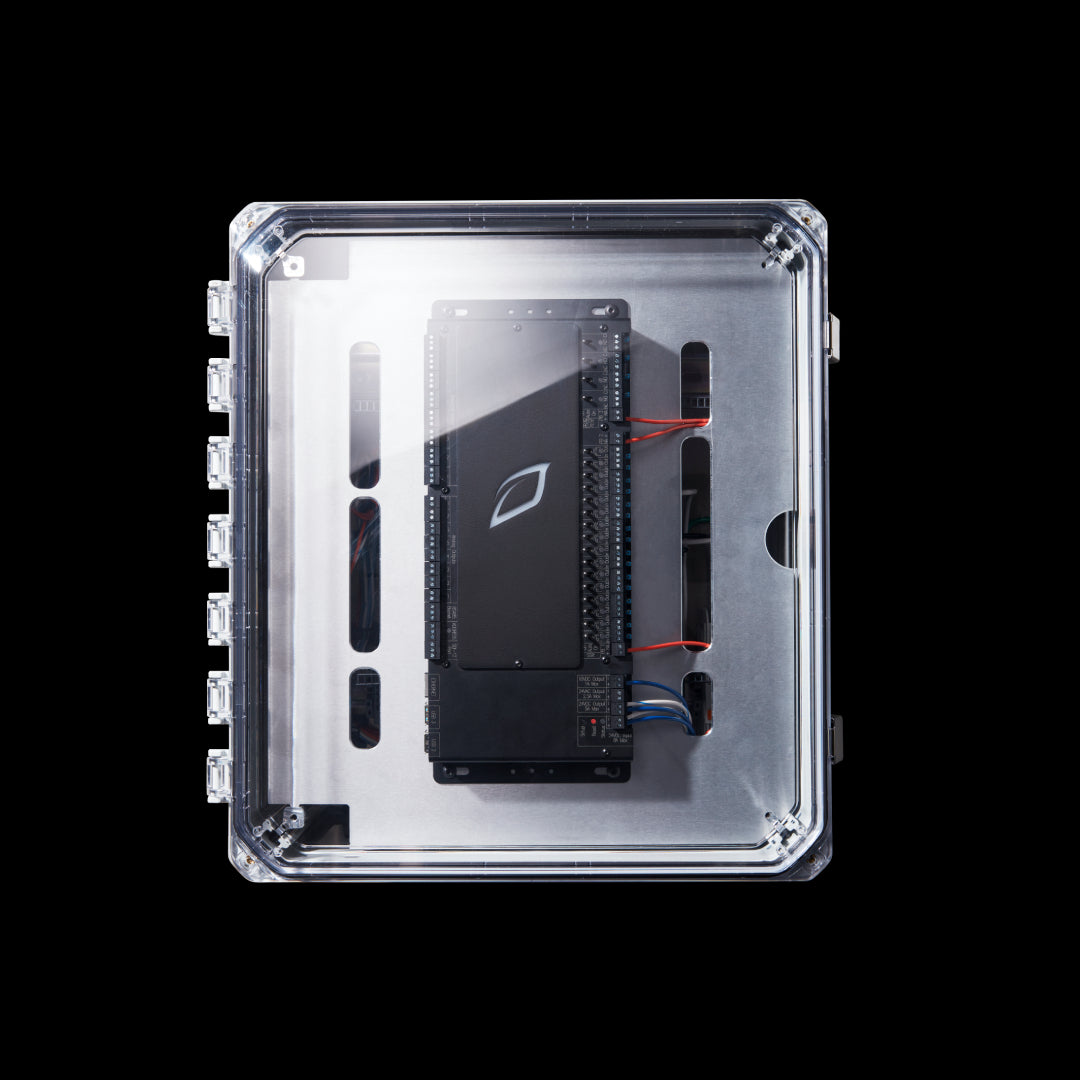

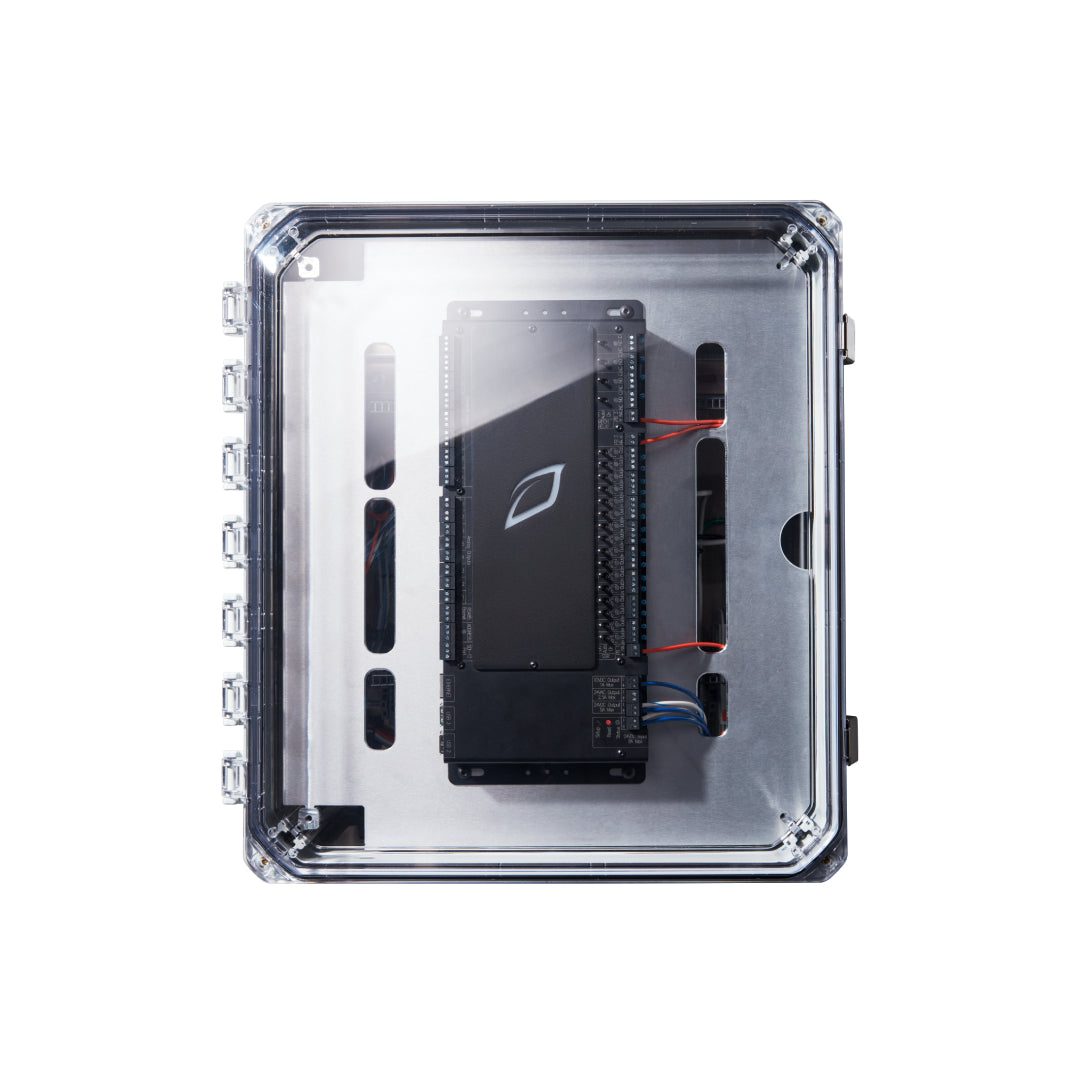

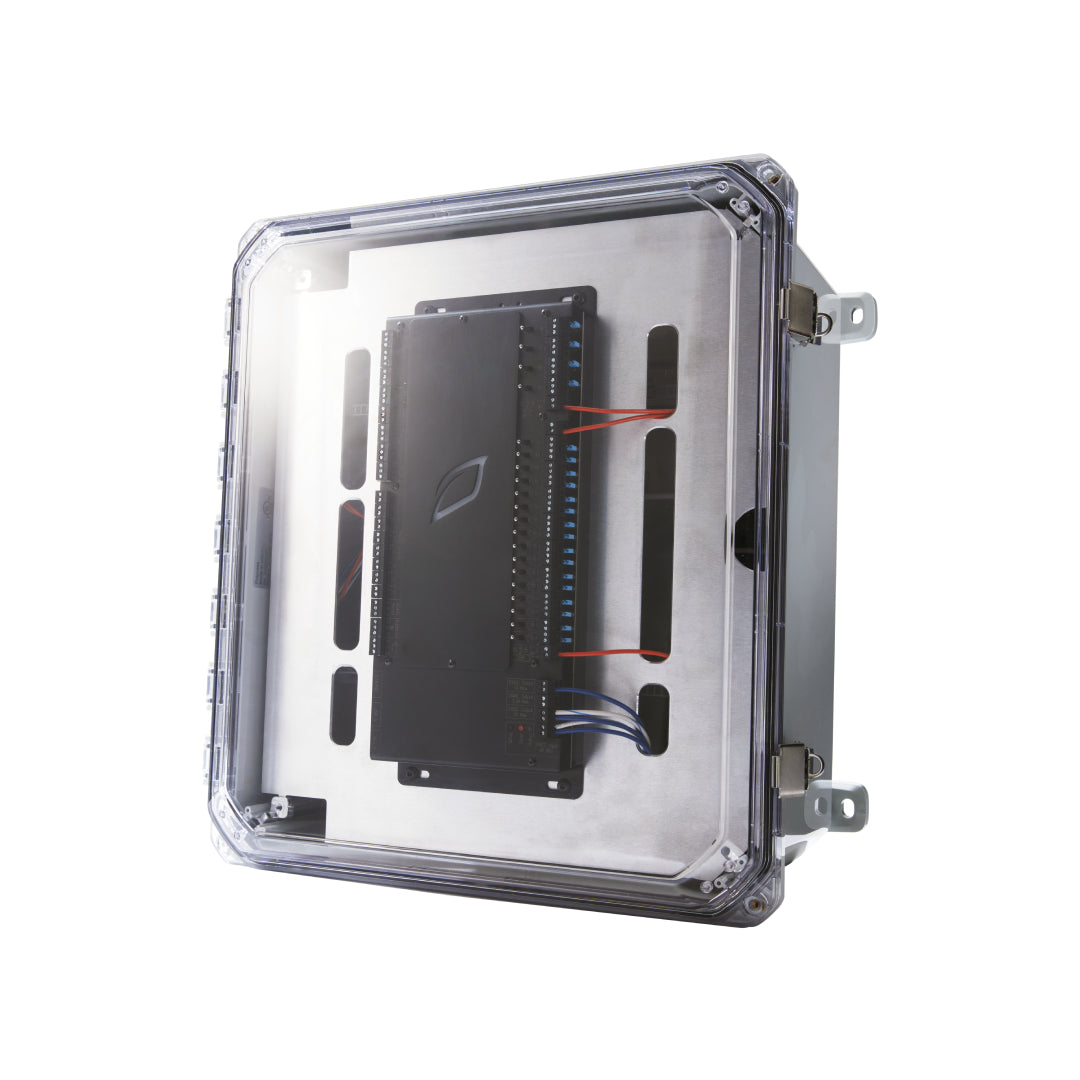

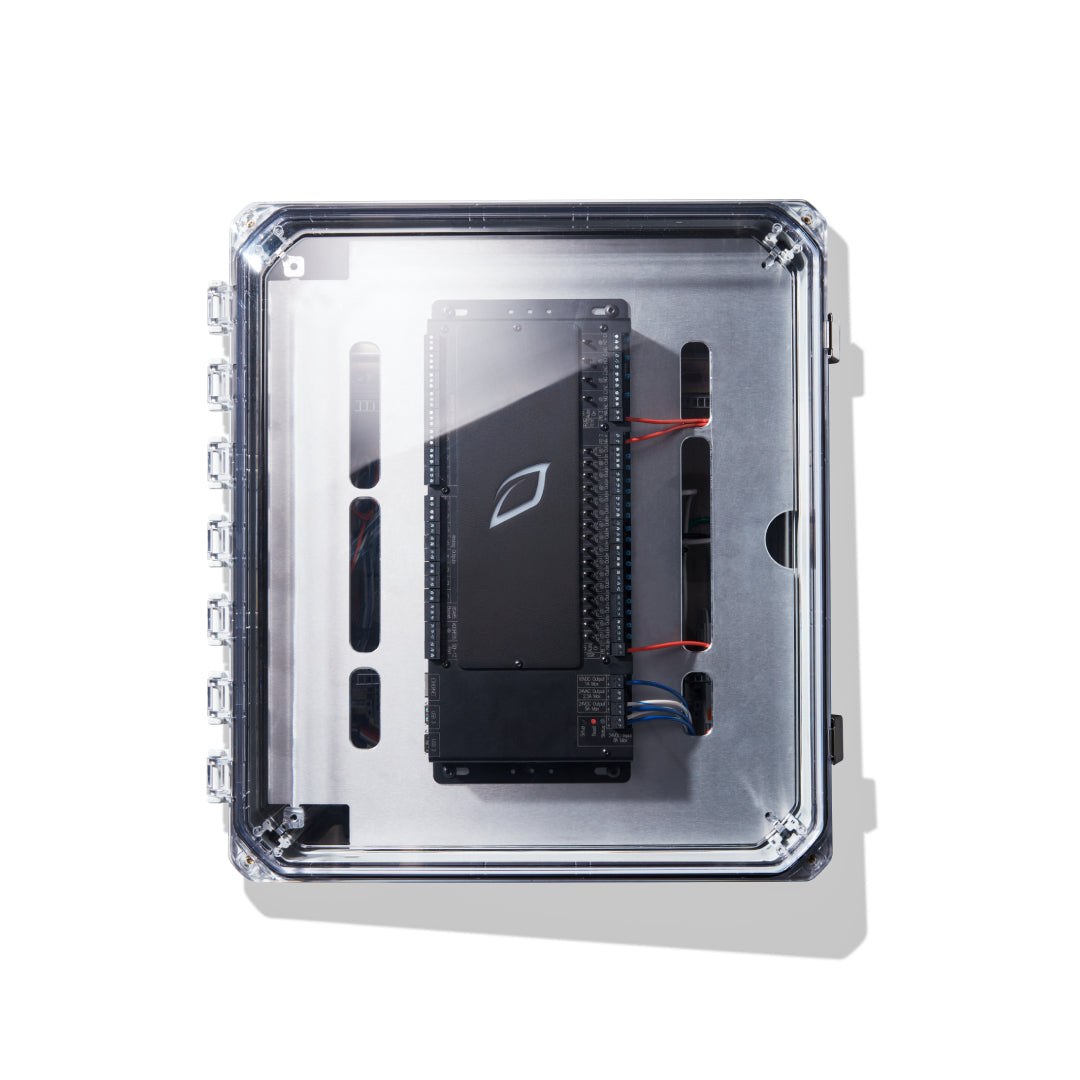

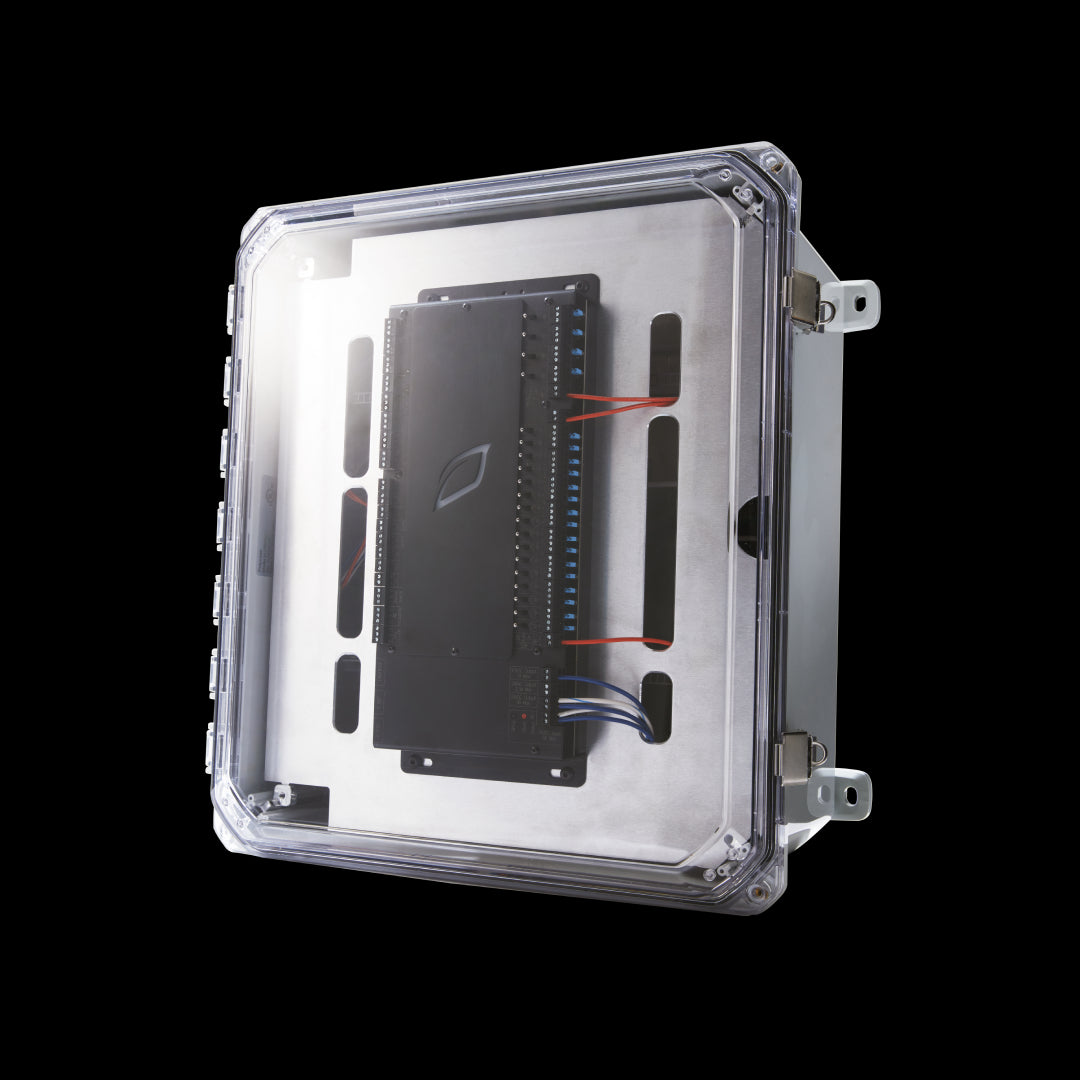

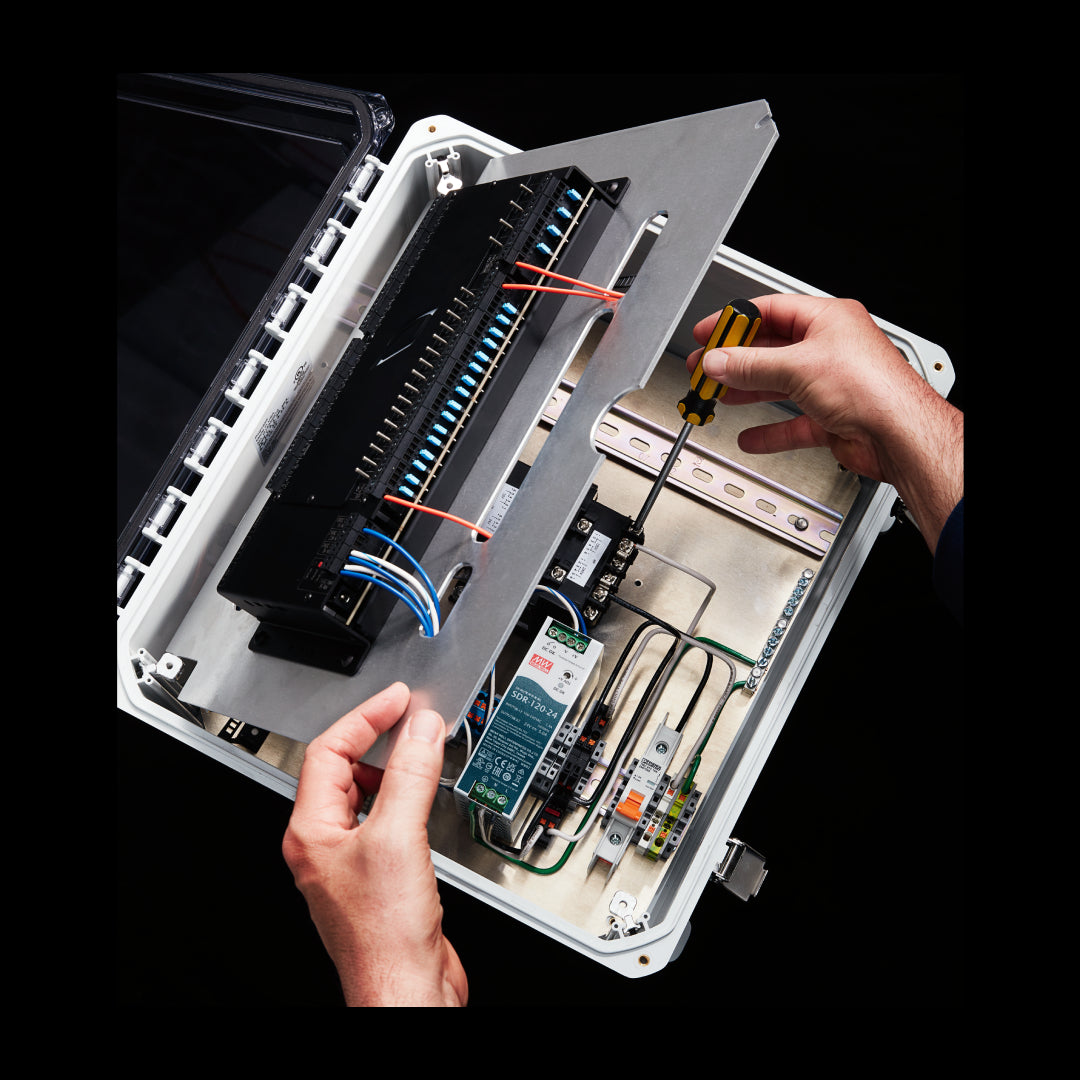

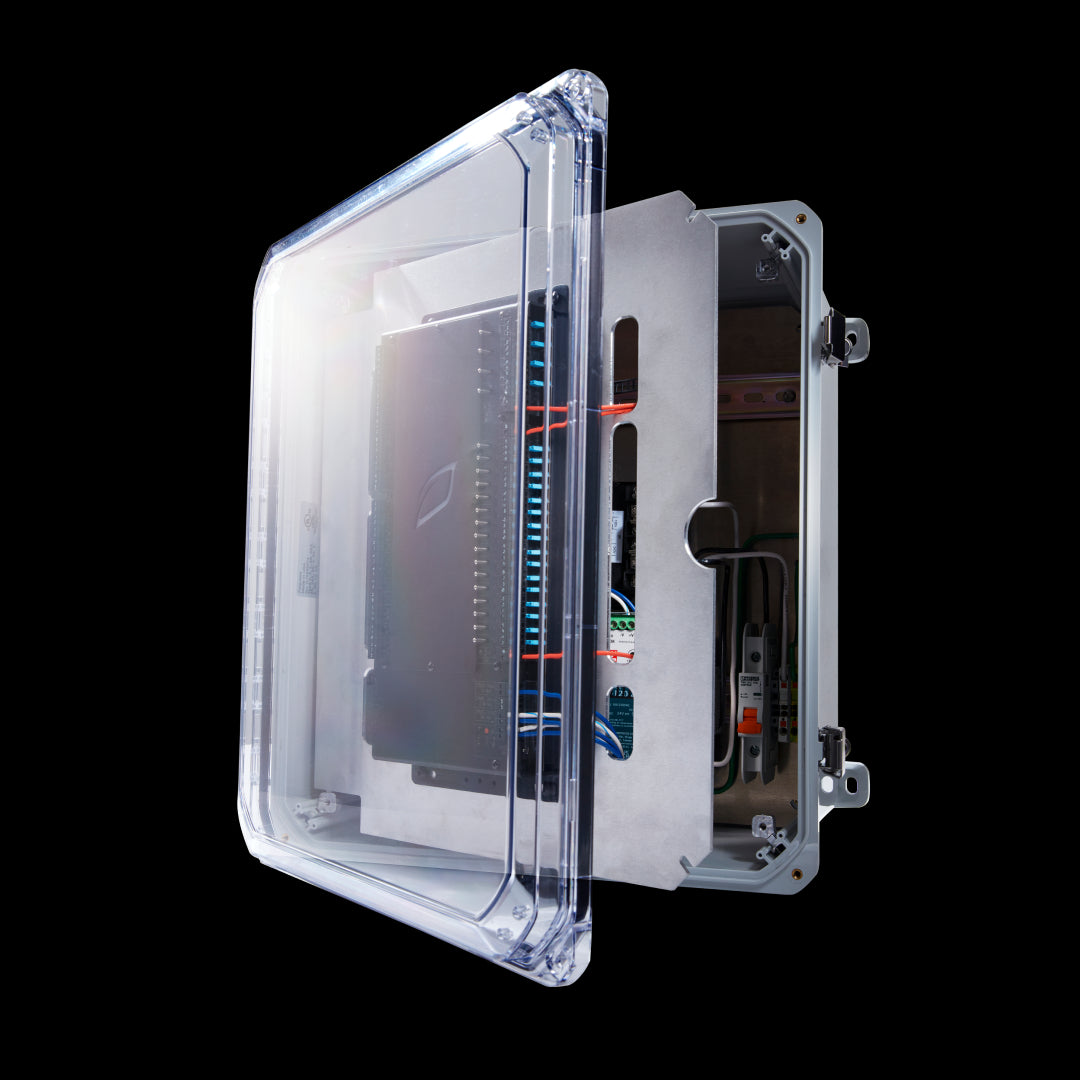

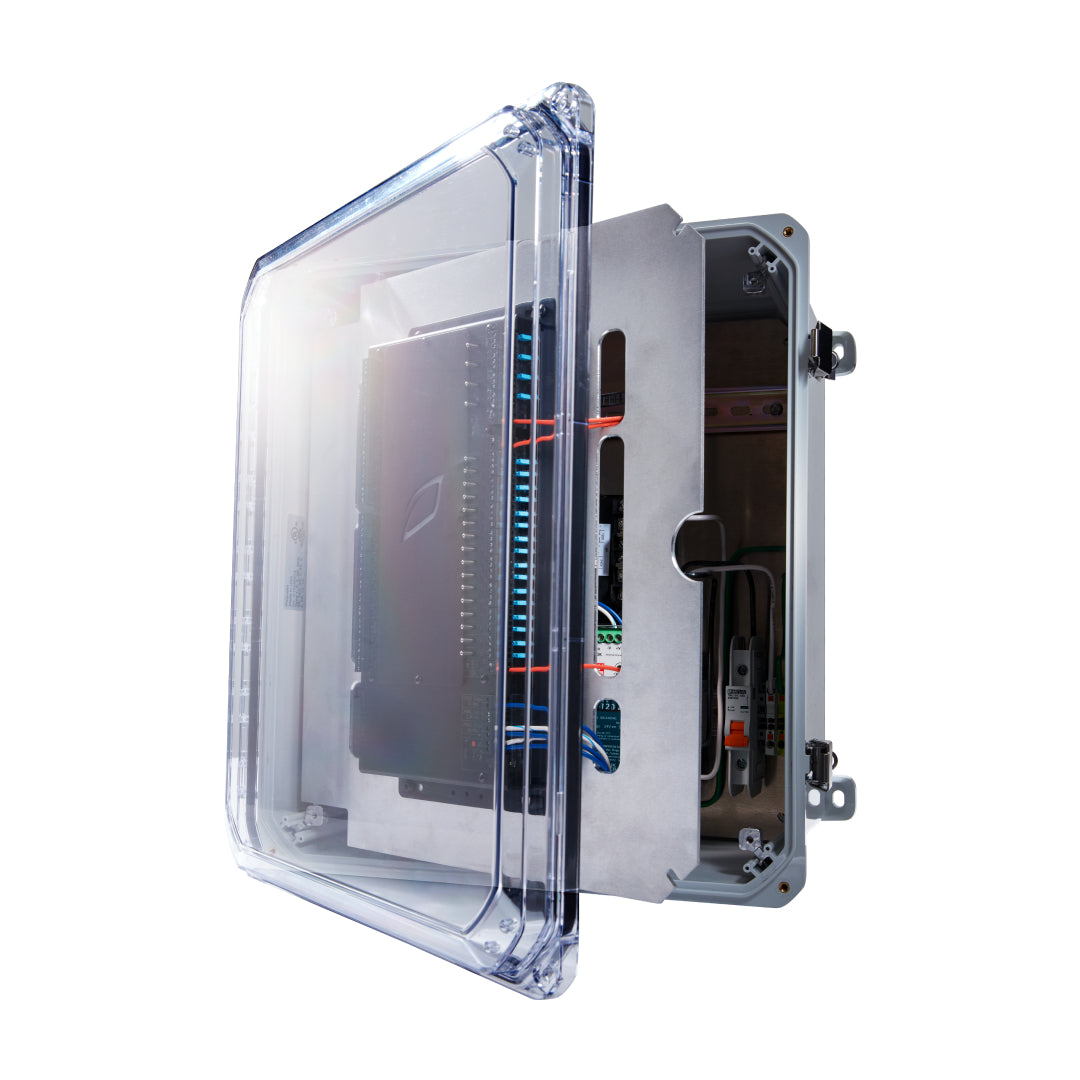

• With Enclosure: 17” x 18” x 9” - 23 lbs.
