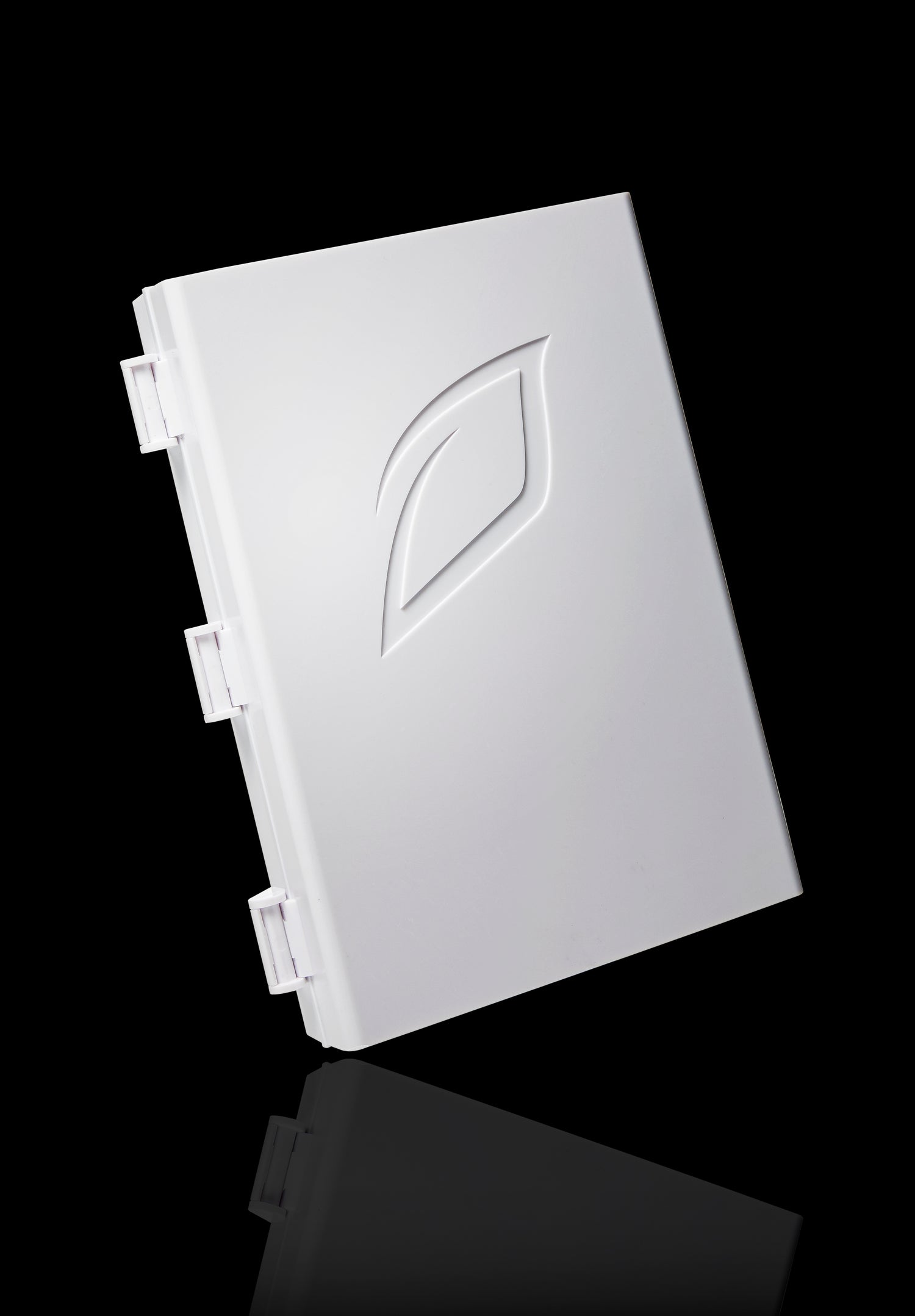

Growlink Batch Tank Monitoring Kit

Introducing the Batch Tank Monitoring Kit, the ultimate solution for remote management and monitoring of your batch tanks. Equipped with Sensorex EC and pH probes, as well as an input for level sensors, flow meters, temperature, pH, and EC.

Features:

• Remote Access- Manage and monitor your batch tanks remotely and quickly adjust strategies from a smartphone, tablet, or laptop - anytime, anywhere.
• Sensorex pH & EC Sensors- Accurately measure and record pH and TDS readings throughout the growth cycle.
• OTA Updates- Our controllers regularly receive over-the-air software updates that add new features and enhance existing ones over Wi-Fi.
• Alerts- Stay informed on all active and historical alerts from your Growlink systems. Fanatical Support - Free support from a Growlink specialist (during office hours).

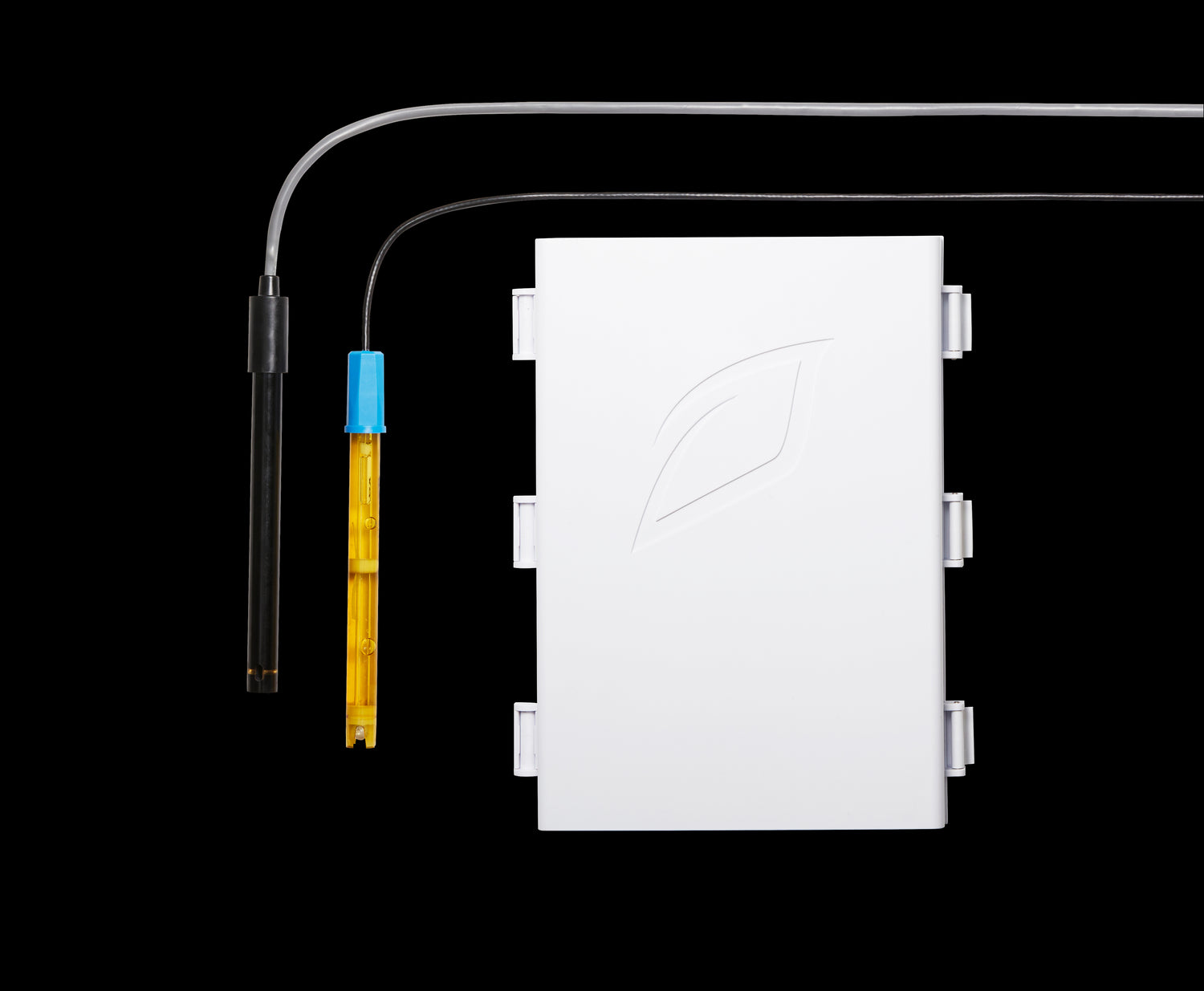

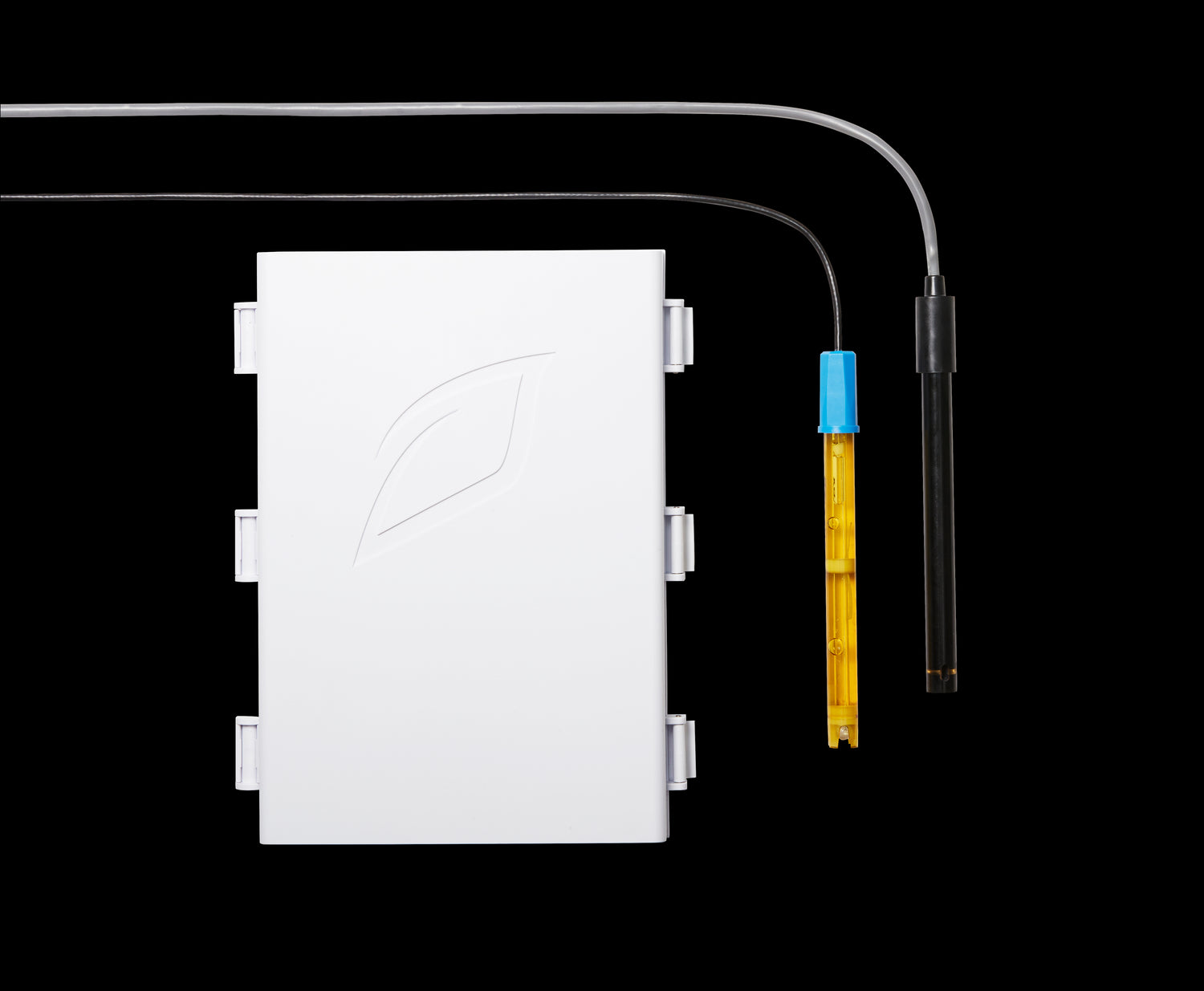

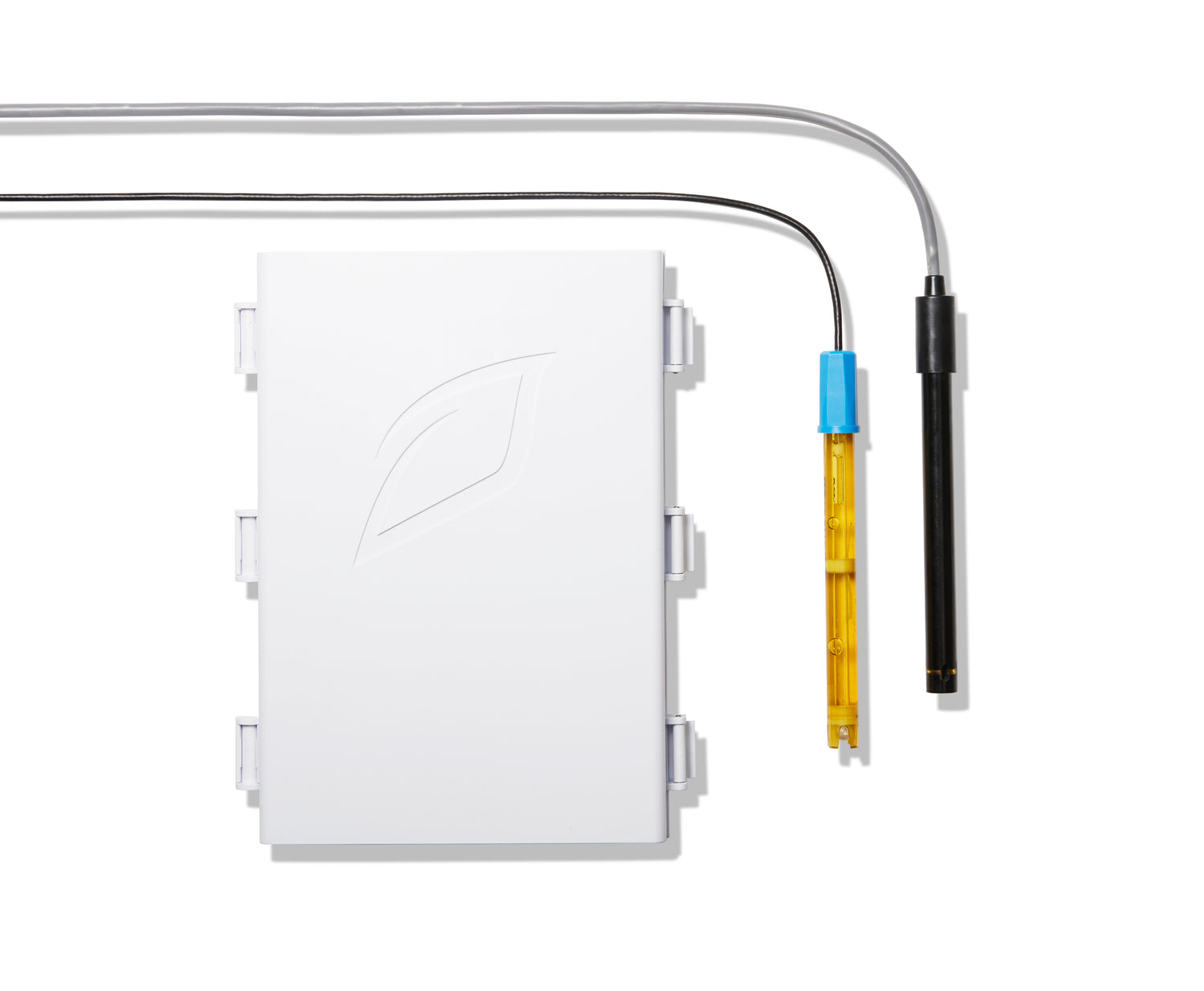

What’s Included

• x1 Batch Tank Monitor
• x1 pH Sensor
• x1 EC Sensor
• x1 Power Supply
• x1 Mounting Hardware Kit
• x1 Calibration Solution Kit (TDS 1413uS, pH 4.01, pH 7.00)*
• *Contents may vary depending on order placed

Specifications

Controller:

• Power Input: 12-24VDC - 1A
• Sensor Input(s):
• 1x 4-20mA Receiver With Integrated 24VDC power
• 1x PT1000 Temperature Probe Port
• 1x Flow Meter Port (Pulse)
• 1x pH Probe Port
• 1x EC Probe Port
• Wi-Fi & Local RF: 2.4 GHz
• Dimensions: (L) 10” x (W) 7” x (D) 1 3⁄4”

Process pH Sensor:

• Measurement Range: 0-14 pH (low NA+ ion error)
• Response Time: 95% in 1 second
• Isopotential: 7.00 pH
• Offset: 0.2%
• Span: > 97%
• Connector: BNC
• Cable Length: 10 feet (3 meters)
• Warranty: One year limited warranty
• Diameter: 12mm
• Length: 150mm
• Reference: Sealed
• Junction Number: Double (2)
• Junction Material: Pellon
• Reference Solution: 3.5 M KCl/AgCl/KNO3 (gel)
• Glass Shape: Bulb
• Body Material: Ultem
• Temperature Range: 0-80° C (32-176° F)
• Strain Relief: No
• BNC Boot: Yes
• Bulb Protection: Teeth

EC Sensor:

• Cell Constant: Choose from k=0.1 or k=1.0 (+/- 10%)
• Graphite: Graphite
• Temperature Range: 0-700 C (32-158° F)
• Pressure Range: 0 – 100 PSIG (0-6.89476 Bar)
• Body Construction: Epoxy
• Cable Length: 10 ft
