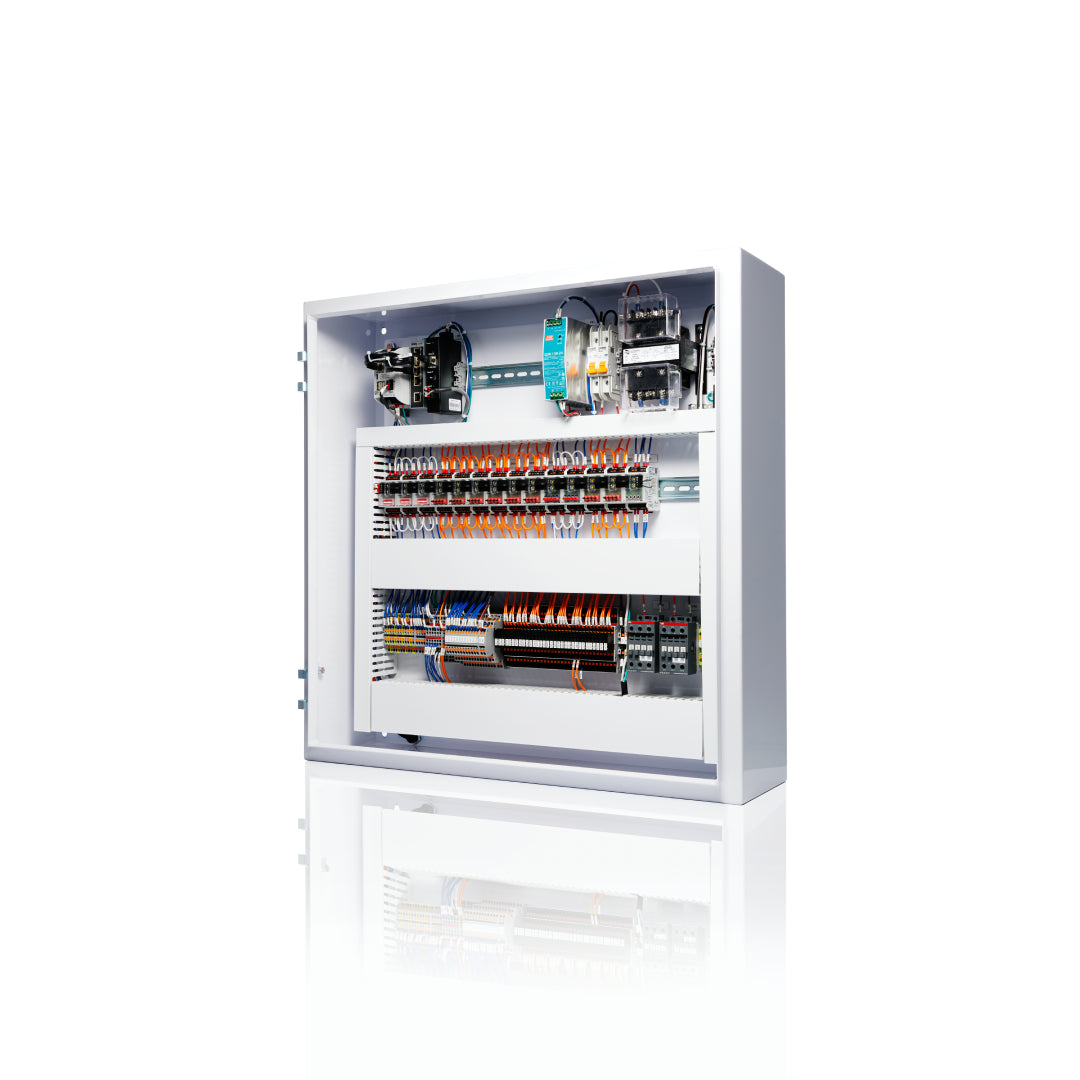

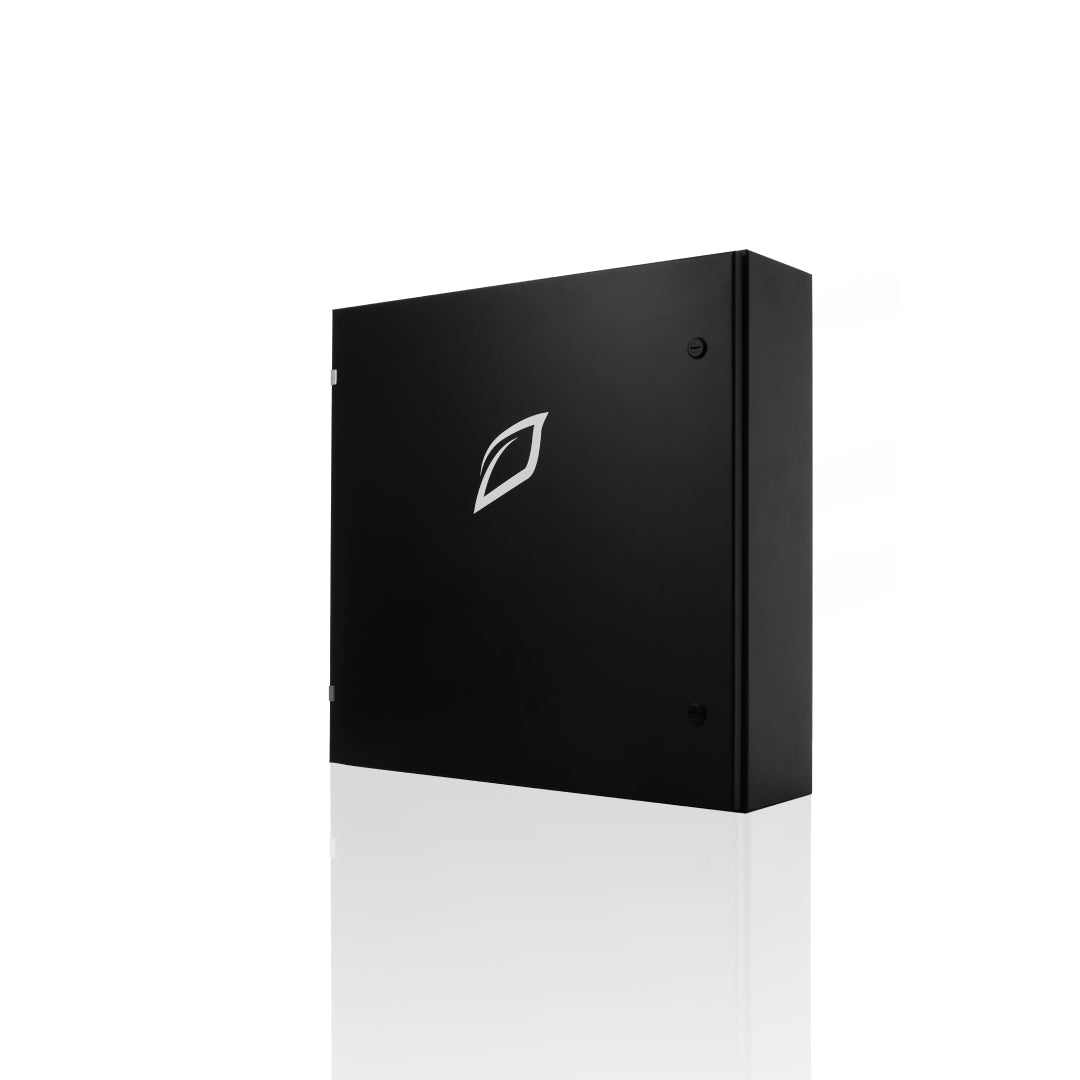

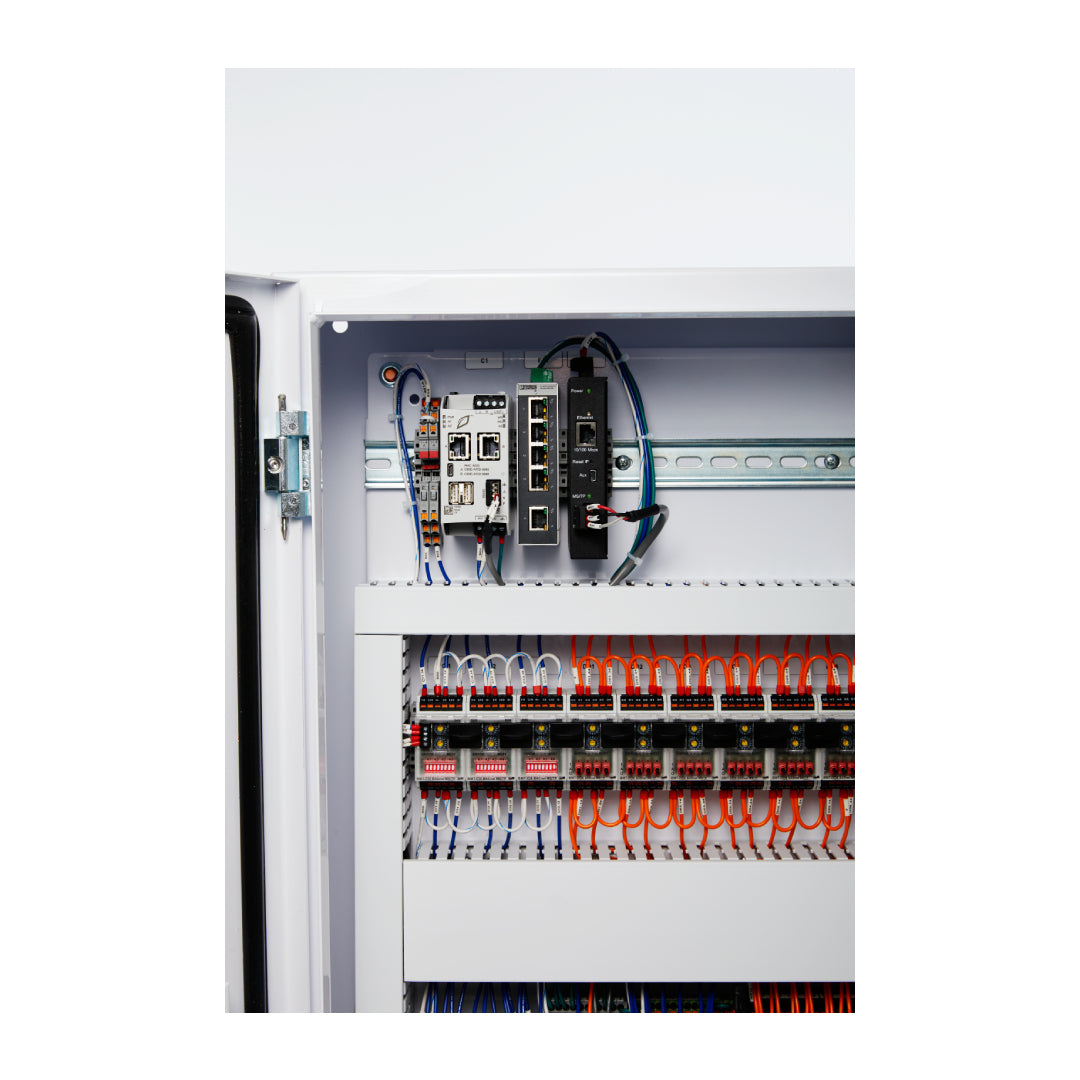

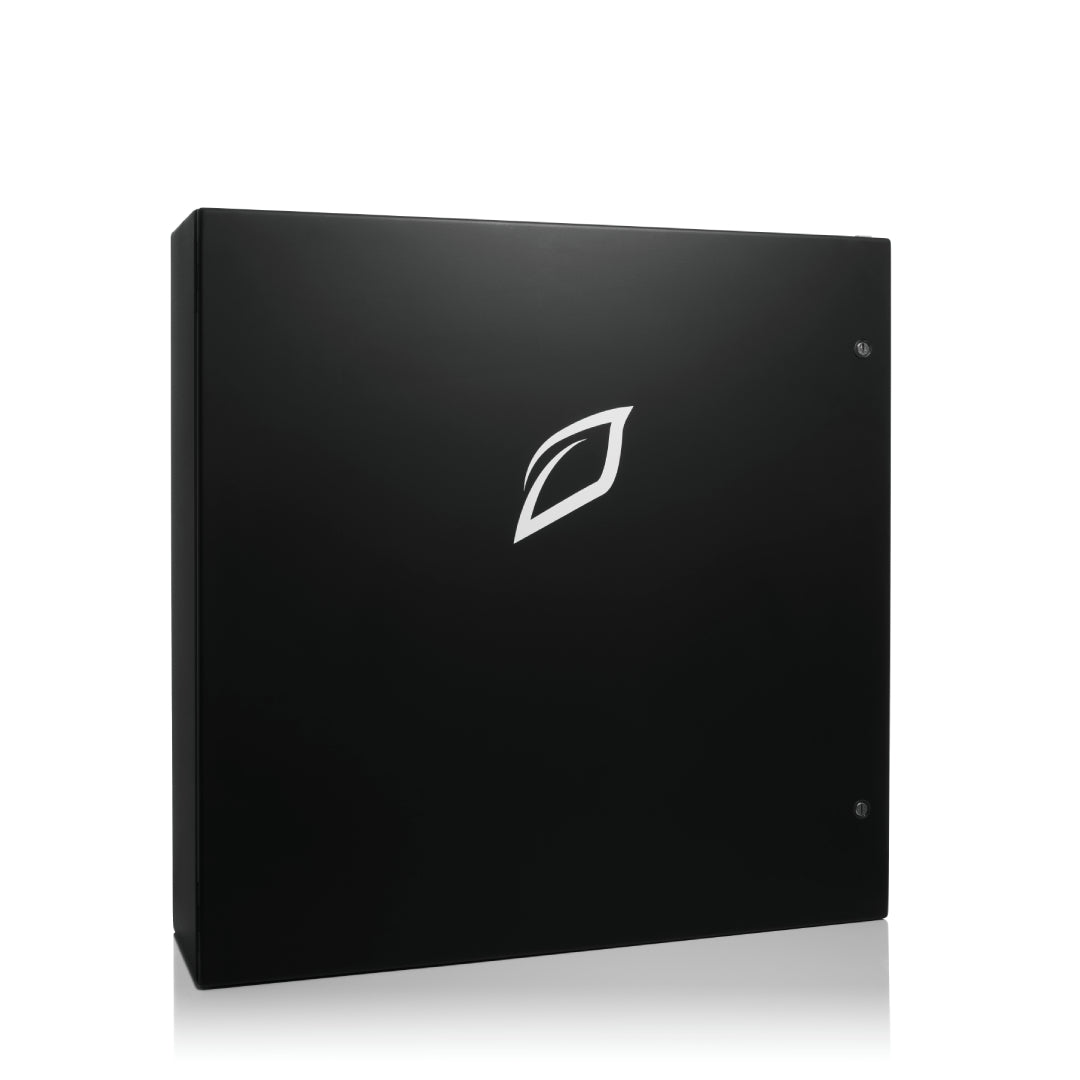

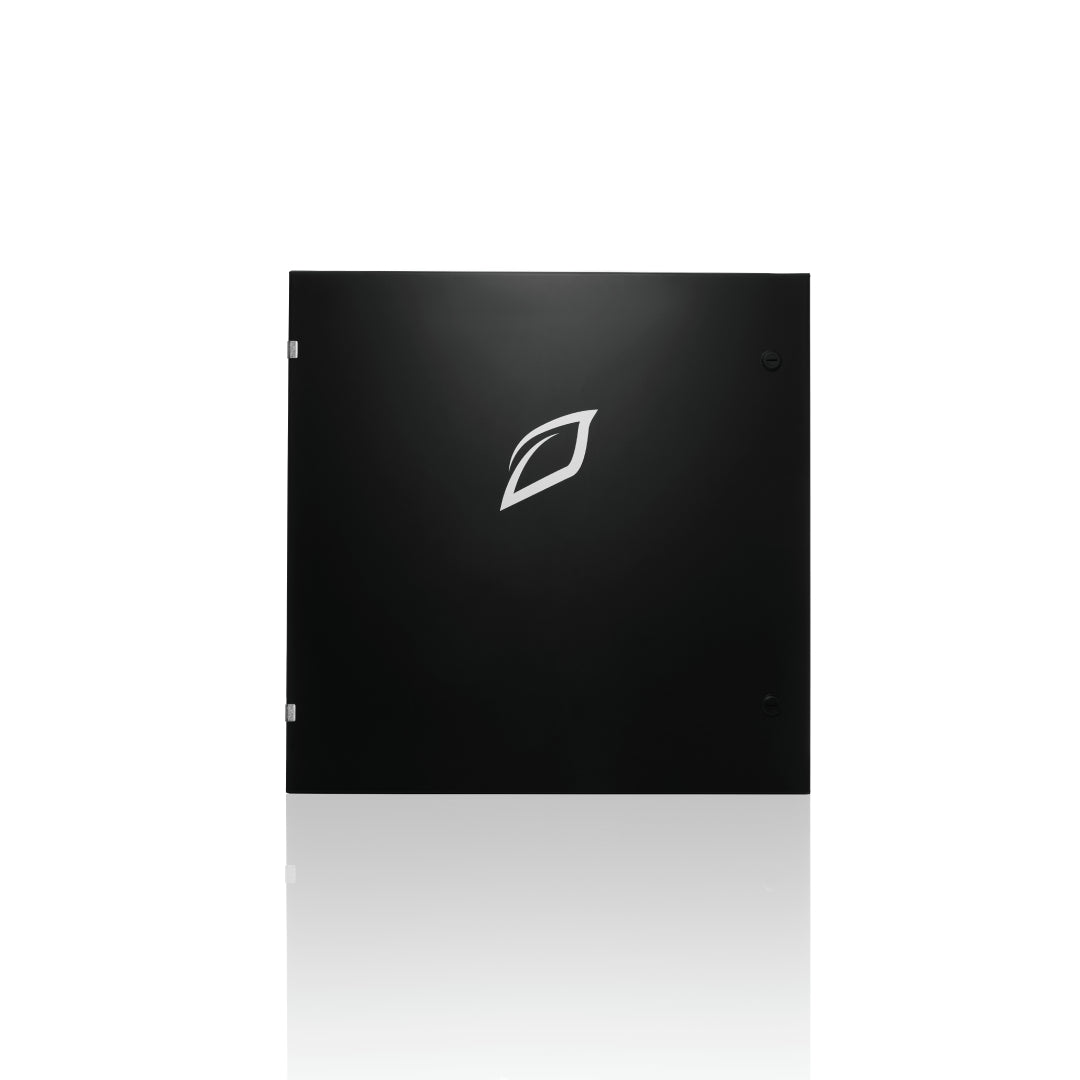

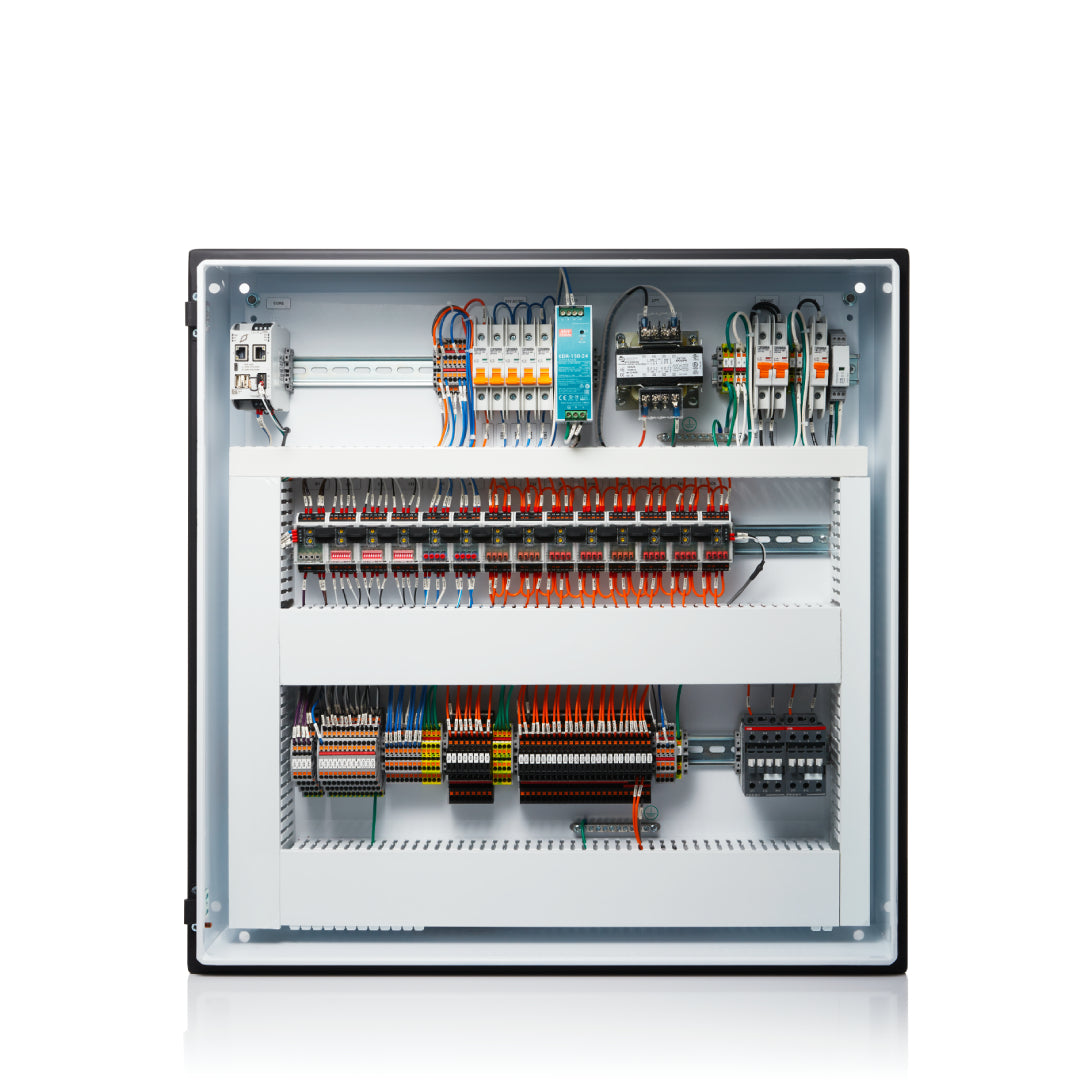

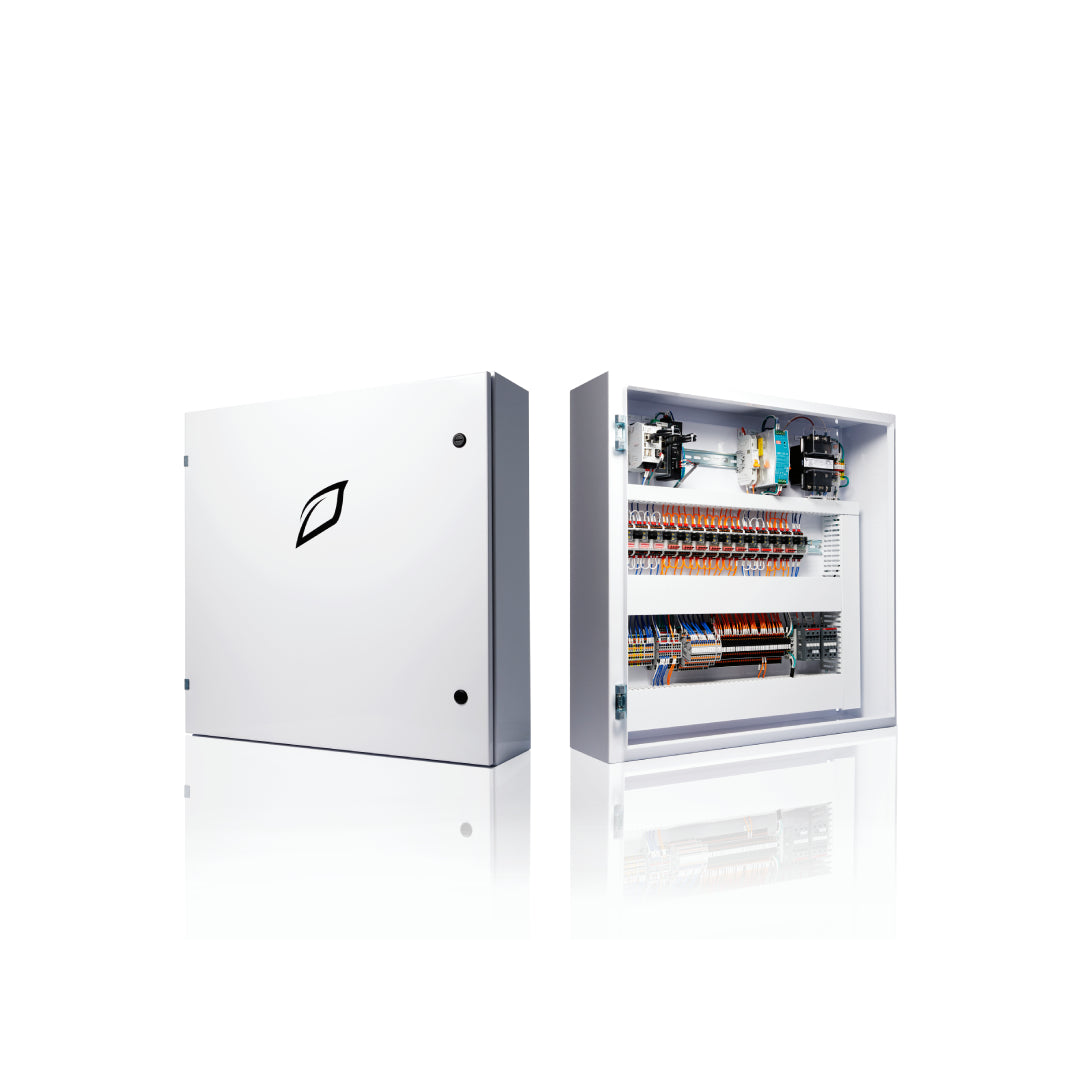

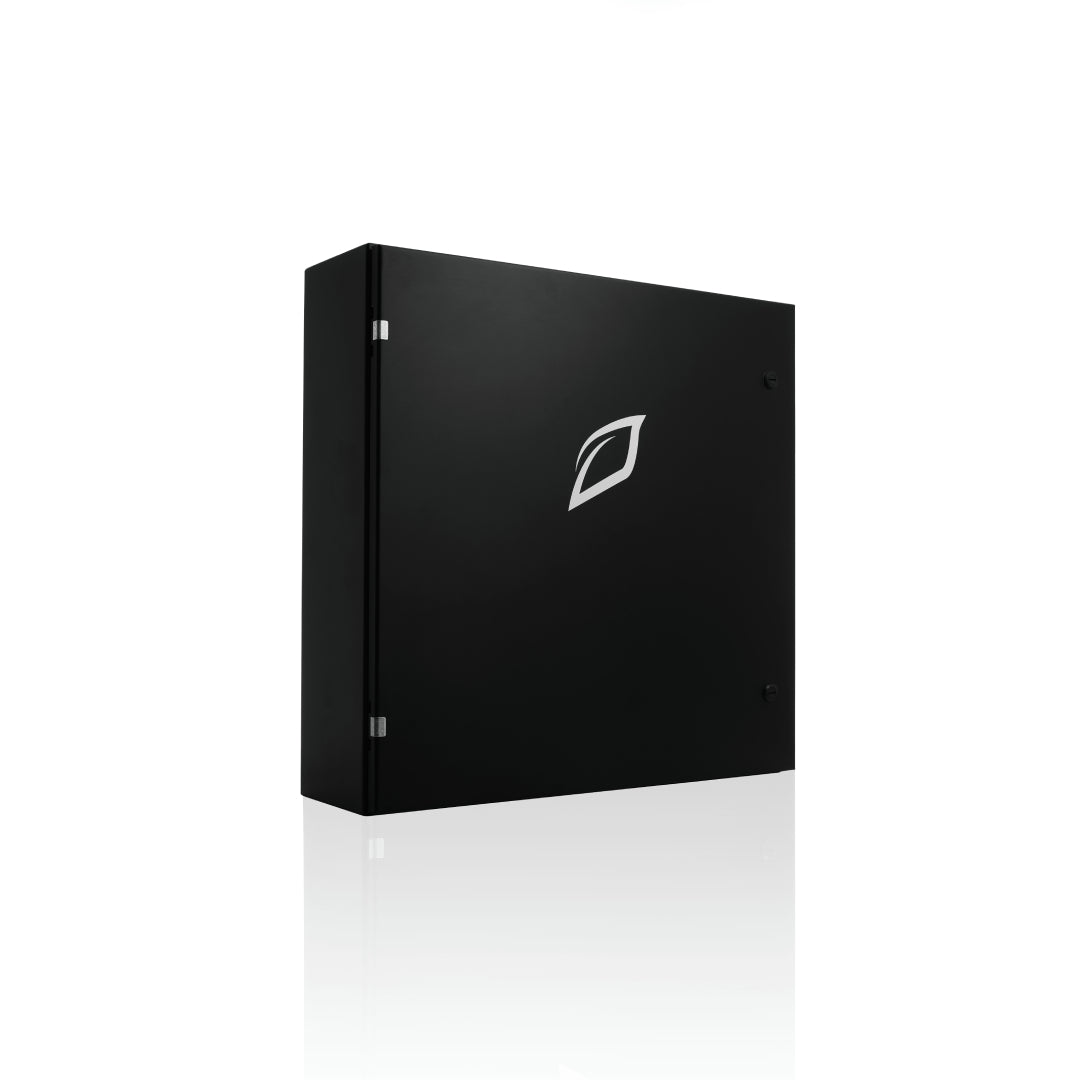

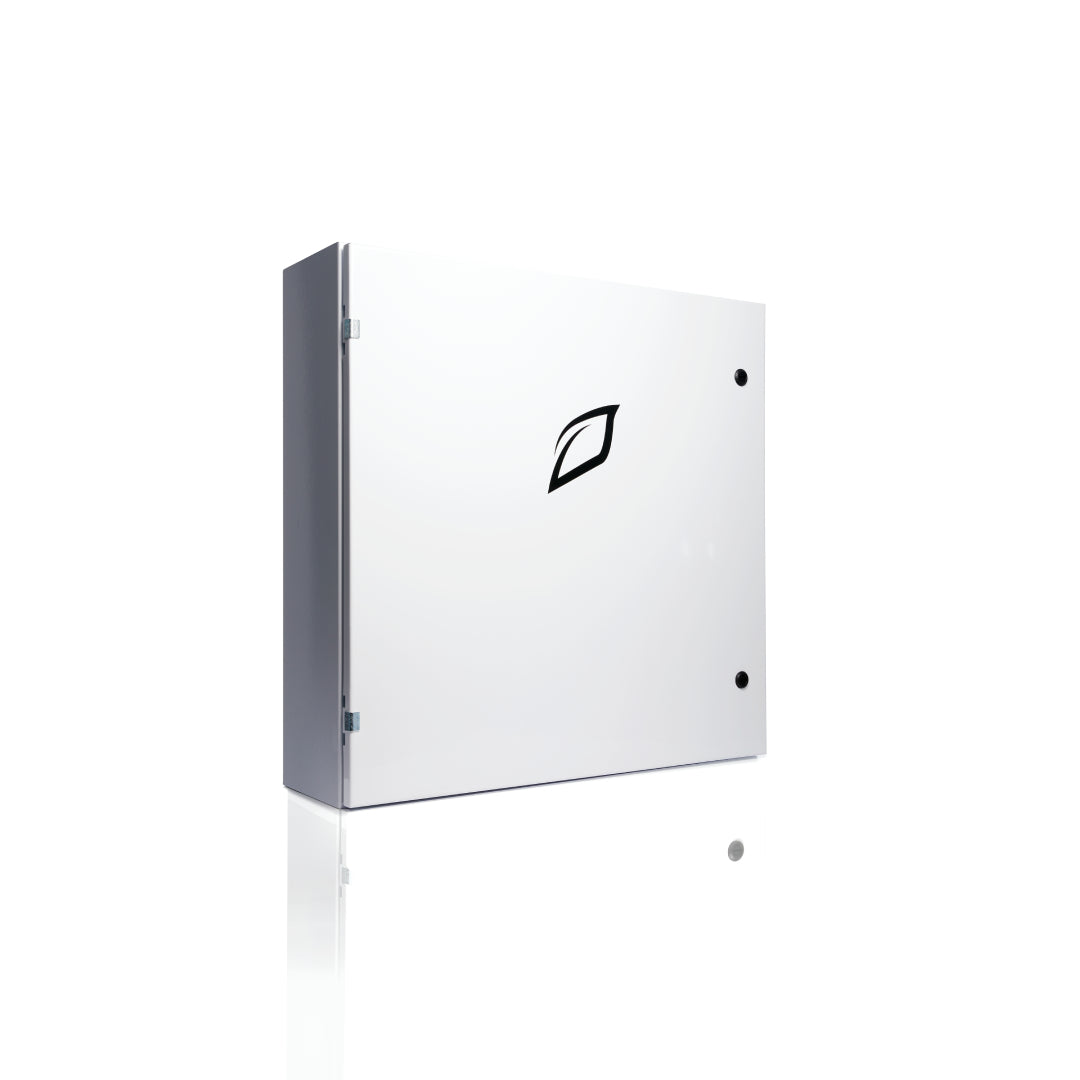

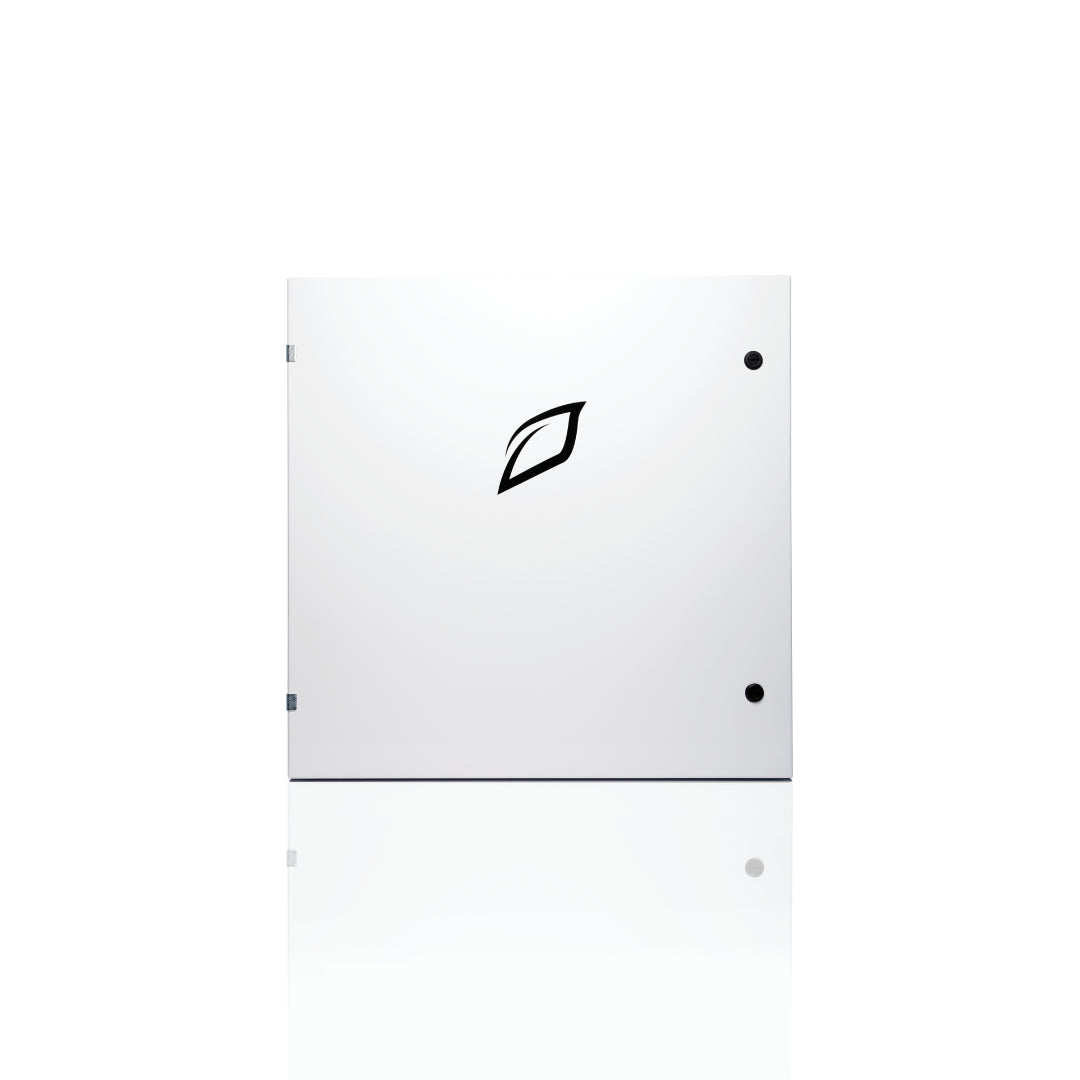

Growlink Core Controller

The Growlink Core Controller is designed to provide advanced control and automation capabilities for indoor agriculture, including hydroponics, vertical farming, and greenhouses. Equipped with the latest Edge 10 Core technology from Growlink, it offers unparalleled performance and flexibility.

Benefits

• Increased Crop Yield and Quality: The Growlink Core Controller ensures that your plants receive the perfect environment for growth. With precise control over climate, irrigation, lighting, and nutrients, you'll experience higher yields and improved crop quality.
• Time and Labor Savings: Automating essential tasks like irrigation and lighting schedules reduces the need for manual intervention, freeing up your time to focus on other aspects of your operation.
• Energy Efficiency: Optimized lighting and climate control help you save on energy costs by reducing unnecessary resource consumption while maintaining ideal conditions for your plants.
• Remote Accessibility: Access your data and make adjustments remotely, allowing you to manage your facility even when you're not on-site. This flexibility is especially valuable for growers with multiple locations.
• Peace of Mind: With real-time monitoring and instant alerts, you can rest easy knowing that your crops are protected. Growlink Core gives you peace of mind, ensuring that you're always in control.

Specifications

General:

• Raspberry PI 4 Model B (8GB Ram Version)
• MicroSD Card 64GB Max Endurance SDCard from SanDisk
• System Status RGB LED
• "Reset" button signals to the Raspberry PI to perform a "soft reset".
• "Setup" Button for potential future use, not currently implemented.
• Onboard real time clock (RTC) with 2 week super-capacitor backup.

Dimensions:

• Customizable UL Asembly

Inputs/Outputs:

• 1x Ethernet
• 2x Micro HDMI
• 4x USB Type A
• 2x SDI-12 Ports
• 1x RS485 BACnet
• 8x Analog Output
• 0-10VDC (default) or 0-12VDC. Firmware Selectable
• Voltage Sourcing
• Capable of supplying 200mA per port.
• 8x Universal Inputs
• 0-10VDC Analog Input (0-11VDC Max)
• 4-20mA Input
• Digital Input Configured With Threshold Voltage.
• Resistive Input (100K NTC/PTC, 10K NTC/PTC, 1K NTC/PTC).
• 3x Power Buses
• Each protected with 6 amp replaceable fuse.
• 4x Mechanical Relays w/ NO, NC, COM connections
• Low speed switching
• Rated for 10 amps - protected with 3 amp replaceable fuses.
• Jumper selection enables "wet" or "dry" contacts.

Inputs/Outputs cont.:

• 16x Solid State Relays w/ NO and COM connections.
• High speed switching
• Rated for 4 amps - protected with 3 amp replaceable fuses.
• Jumper selection enables "wet" or "dry" contacts.

Power Inputs/Outputs:

• General Purpose Power Rails
• 10VDC Power
• 24VDC Power
• 24VAC Power
• Room Controller:
• 24VDC, 3 amp power supply min.
• 24VDC, 8 amp power supply

Warranty:

• 3-Year Advance Replacement
• Special Order - 4 week lead times.
