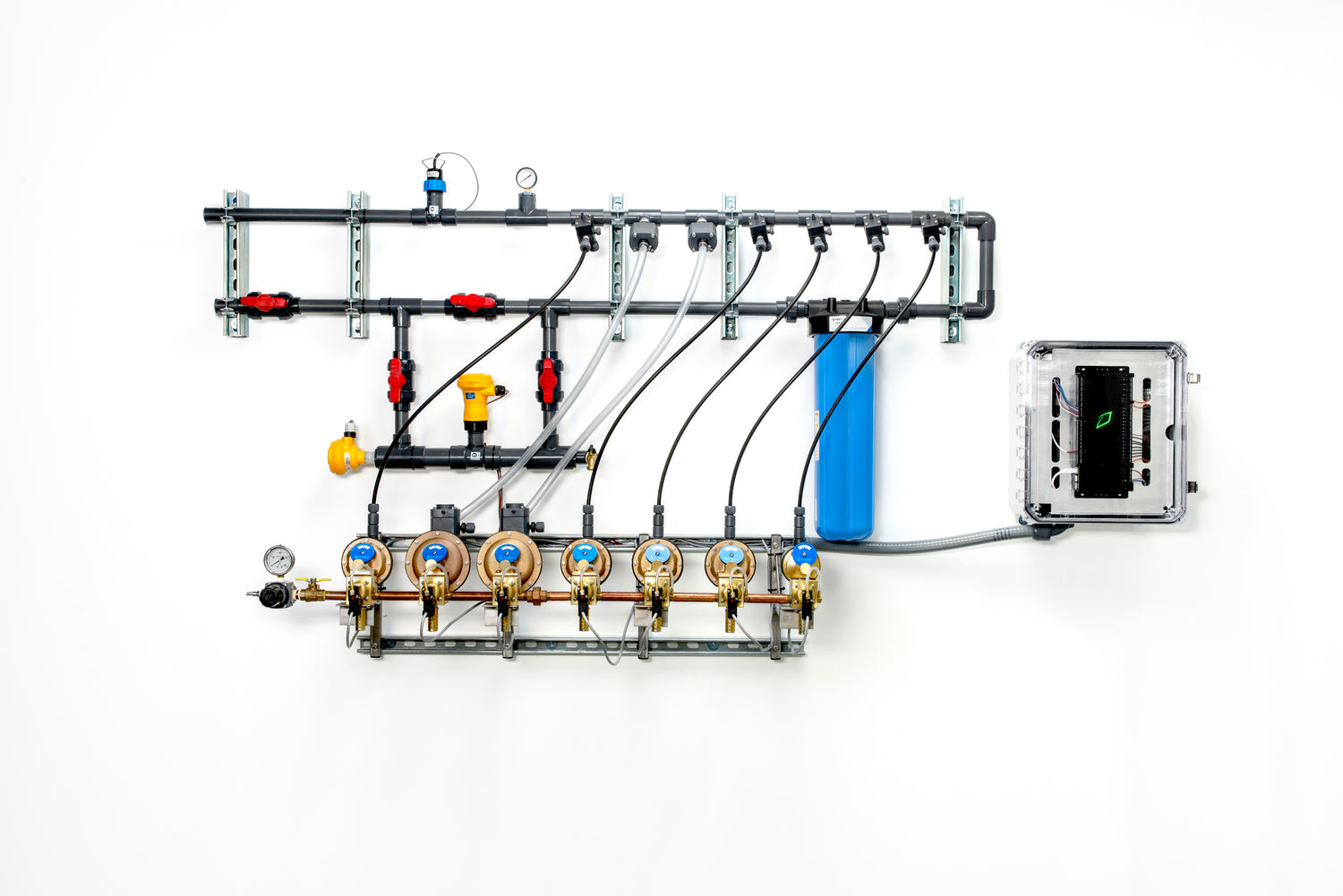

Growlink Nutrient Delivery Kit

Build it yourself with Growlink's Nutrient Delivery Kit (NDK). Experience precision fertigation powered by quality HE Anderson pumpers, seamlessly integrated with Growlink’s Connect Controller and Pro platform. Manage your entire grow with one DIY-friendly system, optimizing nutrient delivery for maximum yields.

Features:

• Compatibility: Our system is compatible with all water systems and suitable for both protected and outdoor crops, providing flexibility and adaptability to your unique gardening needs.
• Precision Fertigation: The GrowLink NDK offers accurate and reliable nutrient dosing, ensuring maximum quality and yield for your crops.
• Total Integration: Control via Growlink software with remote access. Seamlessly integrate with Growlink climate and irrigation for a complete, one platform control solution.
• Optimal Nutrient Intake: Achieve stable pH and EC levels in your irrigation water, essential for the optimal uptake of nutrients for your crops. This prevents deficiencies and diseases while promoting excellent plant quality.
• Automatic Remote Firmware Updates
• API Interface
• Remote Access
• Expandable with Metz IO
• Advanced Reporting
• SDI-12 Support
• BACnet MS/ TP & IP Support

Benefits

• Simplified Batch Mixing: Eliminate the need for a 3-step batching system to save valuable time and space. Our system injects the correct ratio of nutrients while filling the batch tank simultaneously, eliminating the mixing step of other batch mixing systems. In addition, no mixing tank is required which means the recipe is delivered straight to the holding tank. One less tank to purchase and use floor space.
• Nutrient Control: Recipe flexibility allows for all nutrient formulations to be fed from one system for an entire facility, whereas leading competitors mandate separate systems for each recipe or have limited recipe ranges.
• Integrated Batch Monitoring: Effortlessly integrate with accuracy using our Batch Tank Monitoring Kit.
• Feature Packed Software: Capable of utilizing Copilot, Blueprints and all Growlink OS2 features.
• Flexible Solutions: The NDK provides flexibility and versatility for batch tank applications
  using many of the top nutrient lines available.
• Built for Expansion: Equipped to integrate 3rd party sensors including level sensors and more.

Standard:

• In-line pH probe
• In-line EC probe
• In-line paddlewheel flow meter
• In-line blend tank to ensure consistent nutrient mixture.
• Up to (8) H.E. Anderson Pumpers for long-lasting and consistent nutrient
  injection. Choose from any combination of A3, P1, P2 and H4 pumper models.
• Growlink Connect Controller
• 1” pipe diameter only - Designed for 15 Gallon per minute flow rate.
• Control of up to (16) Solenoid Valves.

Options:

• Up to (6) batch tank level sensors to automatically refill recipe tanks.

Sensor Interface:

• Flow Meter
• 3rd Party 4-20 mA Sensors
• 3rd Party BACnet Sensors
• Supported 3rd Party SDI-12 Sensors

Equipment Interface:

• Irrigation Valves
• Anderson Pumpers
• BACnet Industrial Equipment

Specifications

Power Requirements

• 110-240VAC for provided power supply.
• Check power configuration for your country before powering on equipment.
• Controller accepts 24VDC and must use provided power supply.

Temperature

• Max Operating Temperature: 131°F (55°C)

Onboard Voltage Outputs:

• 24VAC Maximum: 2.5A
• 24VDC Maximum: 5A
• 10VDC – Maximum: 1A

Network Connections

• (x1) Ethernet Port (RJ45)

(x3) Power Bus

• Maximum Amperage per Bus: 3A
• Maximum AC Voltage: 38VAC
• Maximum DC Voltage: 48VDC

(x16) Solenoid Valve Outputs

• Maximum Amperage per channel: 1A
• Voltage: 24VAC
• Cycle Life: Near Infinite
• Max Terminal Wire Gauge: 12AWG (2.05mm)

(x4) Mechanical Relays

• Maximum Amperage: 3A
• Maximum AC Voltage: 38VAC
• Maximum DC Voltage: 48VDC
• Estimated Cycle Life: 100,000 Mechanical Cycles
• Max Terminal Wire Gauge: 12AWG (2.05mm)

(x8) Analog Outputs

• 0-10VDC Output for General Control
• Max current per channel: 200mA
• Max Terminal Wire Gauge: 12AWG (2.05mm)

(x6) Available Universal Inputs (UI)

• Maximum Voltage: 24VDC (Do not connect AC voltage)
• Signals Recognized: 4-20mA, 0-10VDC, 470-500kΩ Resistive Inputs
• Digital Inputs (3V DC Threshold for On/Off)
• Max Terminal Wire Gauge: 12AWG (2.05mm)

(x1) SDI-12 Channel

• 12VDC Output – 750mA Max
• Max SDI-12 Device Count: 36
• Addresses 0-9, and A-Z (Uppercase)
• Max Terminal Wire Gauge: 12AWG (2.05mm)

(x1) RS485 Serial Port

• For BACnet MS/TP Communications only
• Max Terminal Wire Gauge: 12AWG (2.05mm)
