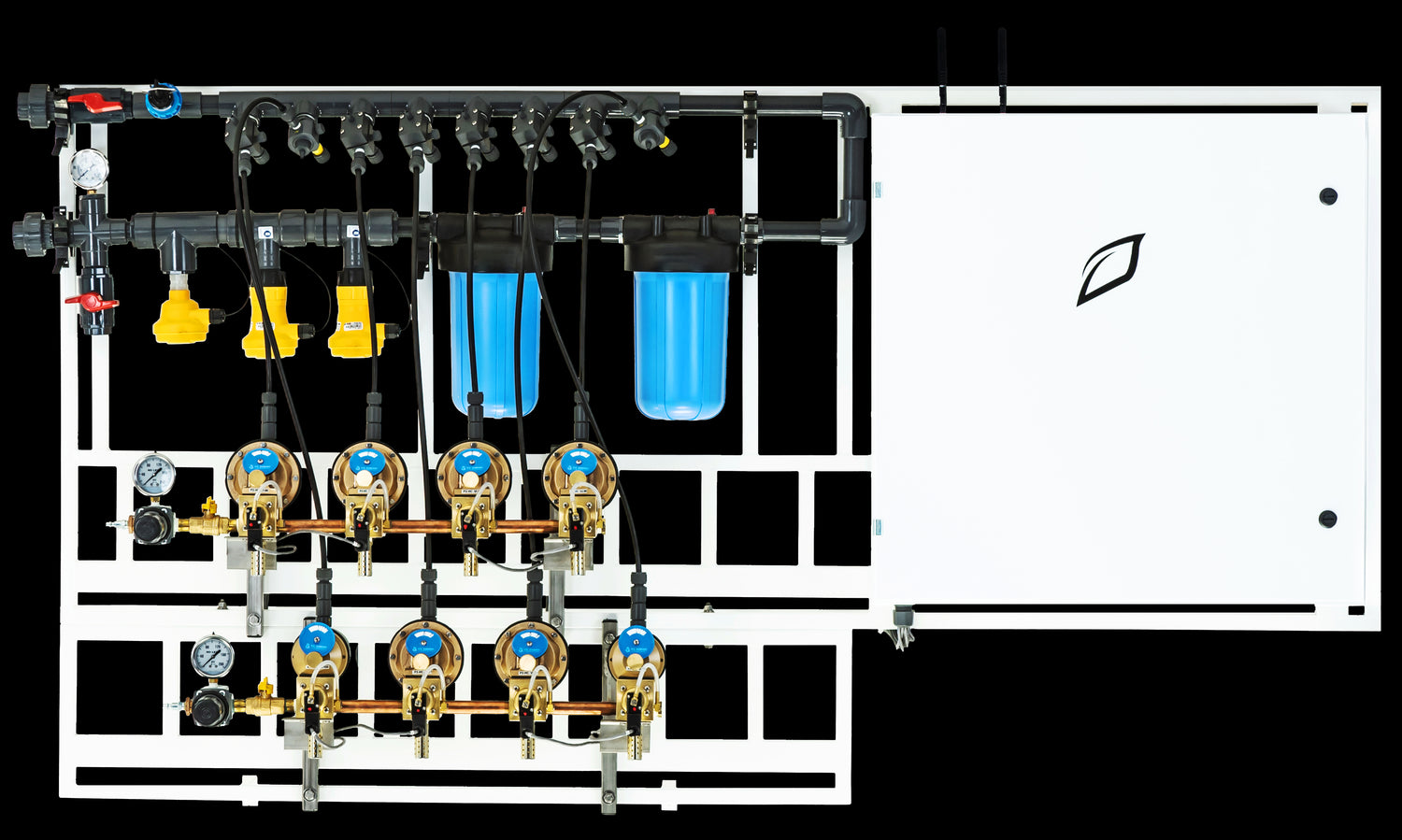

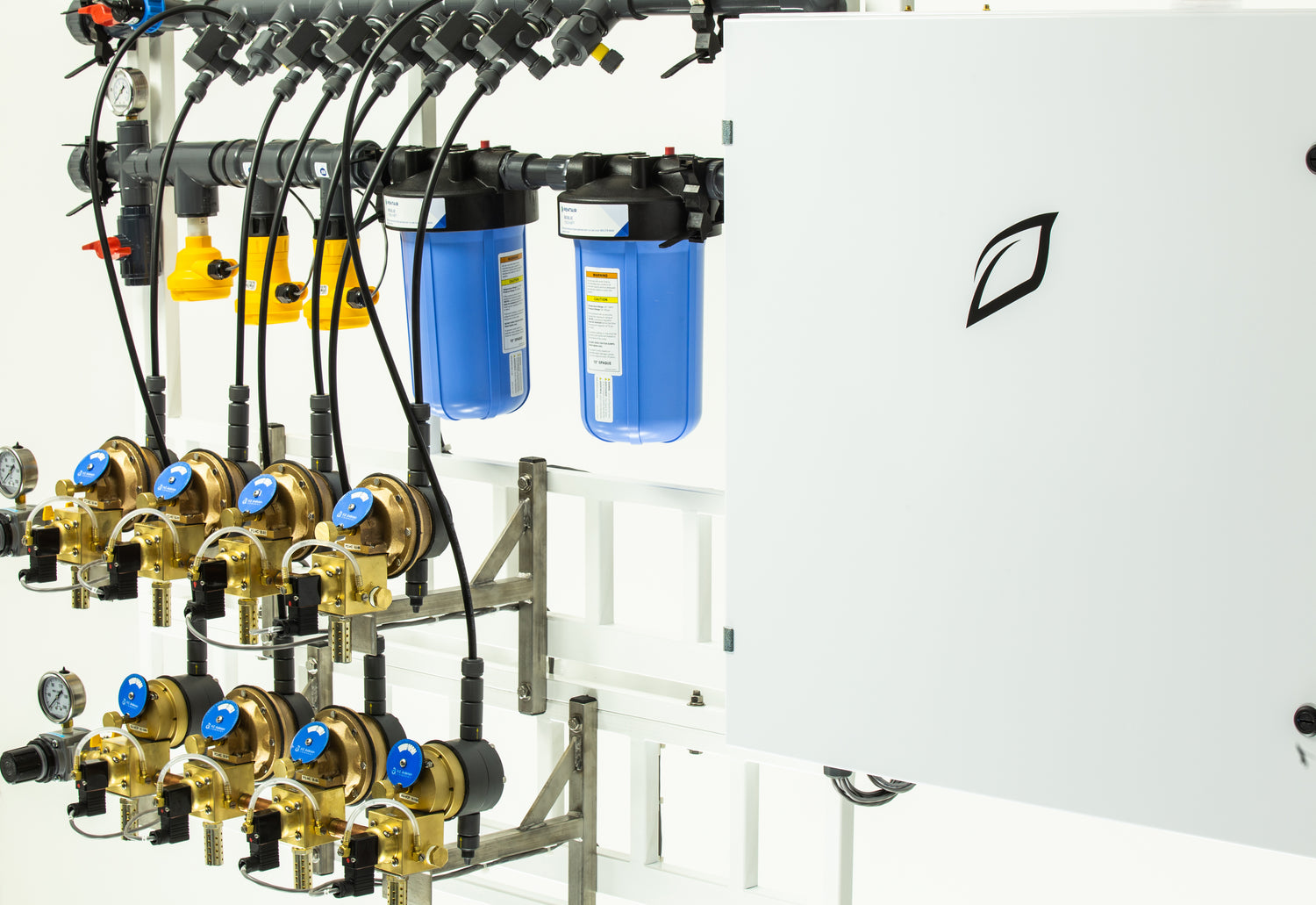

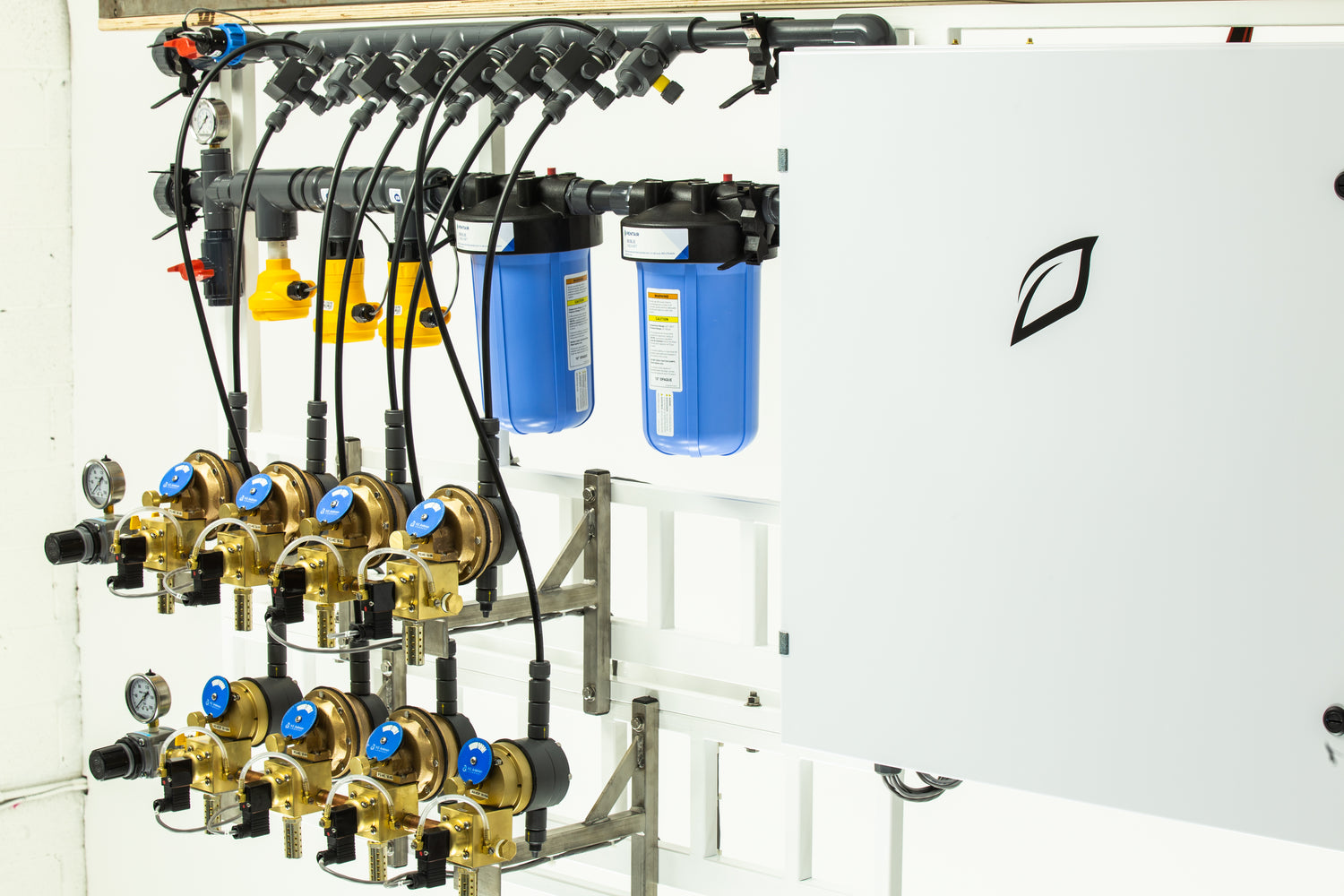

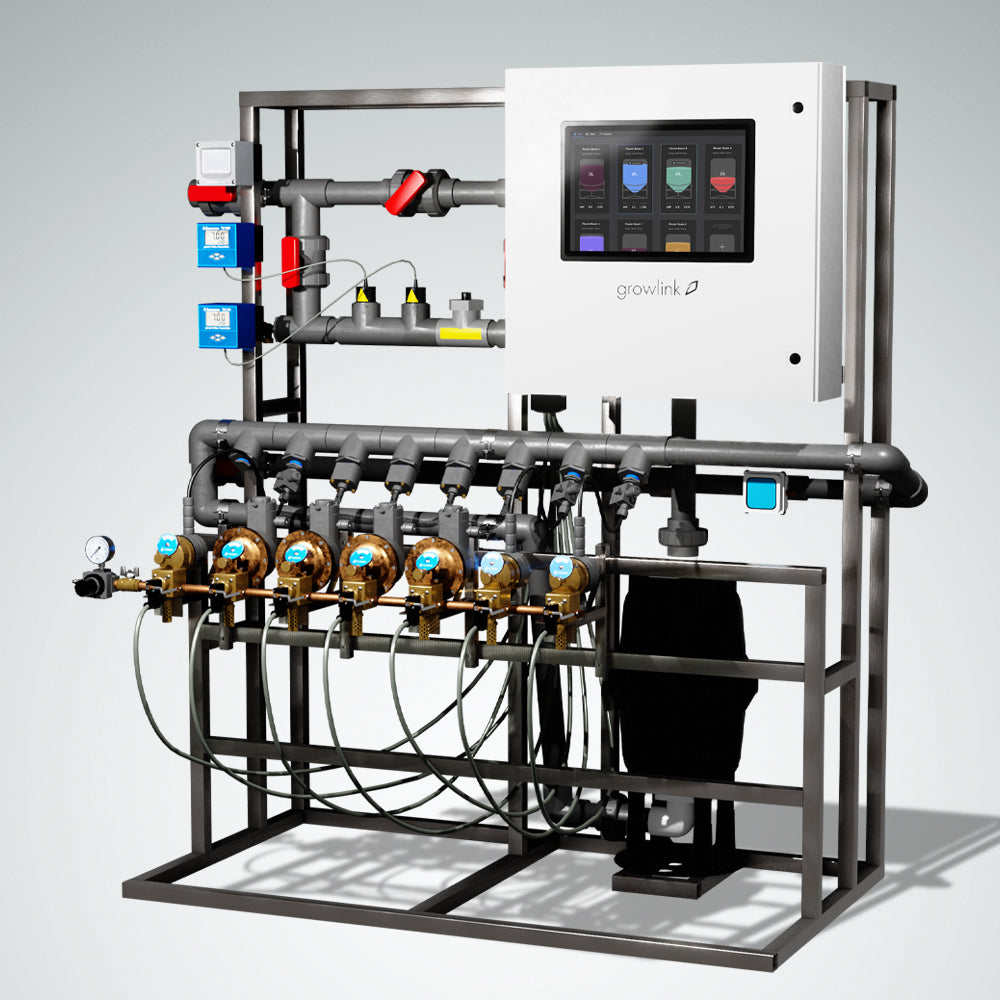

Growlink Nutrient Delivery System

Growlink's Nutrient Delivery System (NDS) offers precision fertigation, utilizing quality HE Anderson pumpers and Growlink's Core Controller and Pro platform. Easily manage your entire facility with just one system, for efficient and effective nutrient delivery.

Features:

• Precision Fertigation: The GrowLink NDS offers accurate and reliable nutrient dosing, ensuring maximum quality and yield for your crops.
• Compatibility: Our system is compatible with all water systems and suitable for both protected and outdoor crops, providing flexibility and adaptability to your unique gardening needs.
• Optimal Nutrient Intake: Achieve stable pH and EC levels in your irrigation water, essential for the optimal uptake of nutrients for your crops. This prevents deficiencies and diseases while promoting excellent plant quality.
• Total Integration: Control the GrowLink NDS via Growlink software with remote access. Seamlessly integrate with Growlink climate and irrigation for complete control, all-in-one platform.

Benefits

• Fully Customizable Irrigation: Tailor your irrigation system to your specific requirements by selecting the appropriate manifold size, blend tank specifications, quantity, number of HE Anderson pumpers, injectors, and controlled valves.
• Nutrient Control: Recipe flexibility allows for all nutrient formulations to be fed from one system for an entire facility, whereas leading competitors mandate separate systems for each recipe or have limited recipe ranges.
• Integrated Batch Monitoring: Effortlessly integrate with accuracy using our Batch Tank Monitoring Kit.
• Flexible Solutions: The NDS provides flexibility and versatility for both batch tank and direct inject applications.

Specifications:

• Power: 120VAC/20A dedicated circuit required. Onboard surge protection.
• Network: CAT5e or CAT6 required.

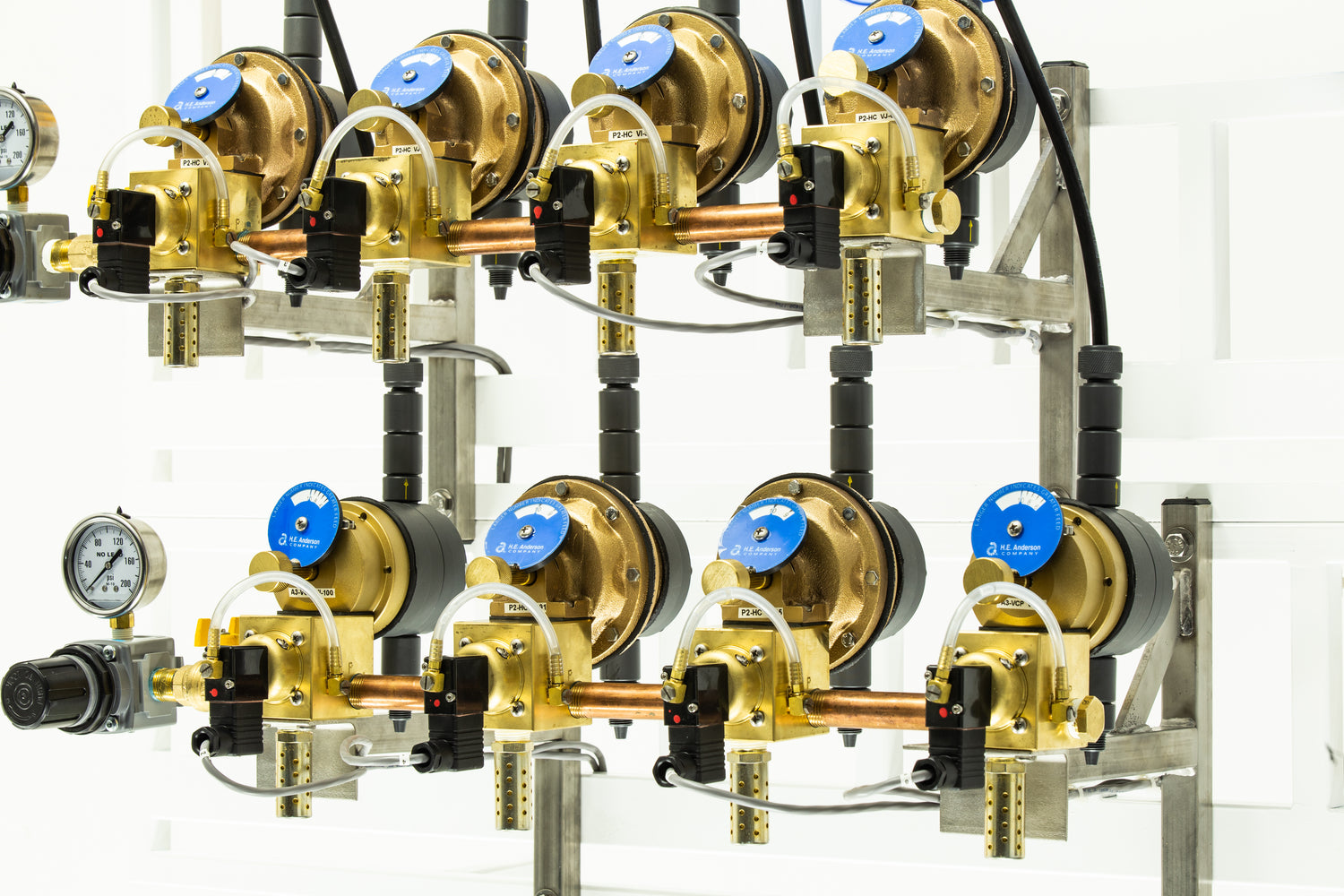

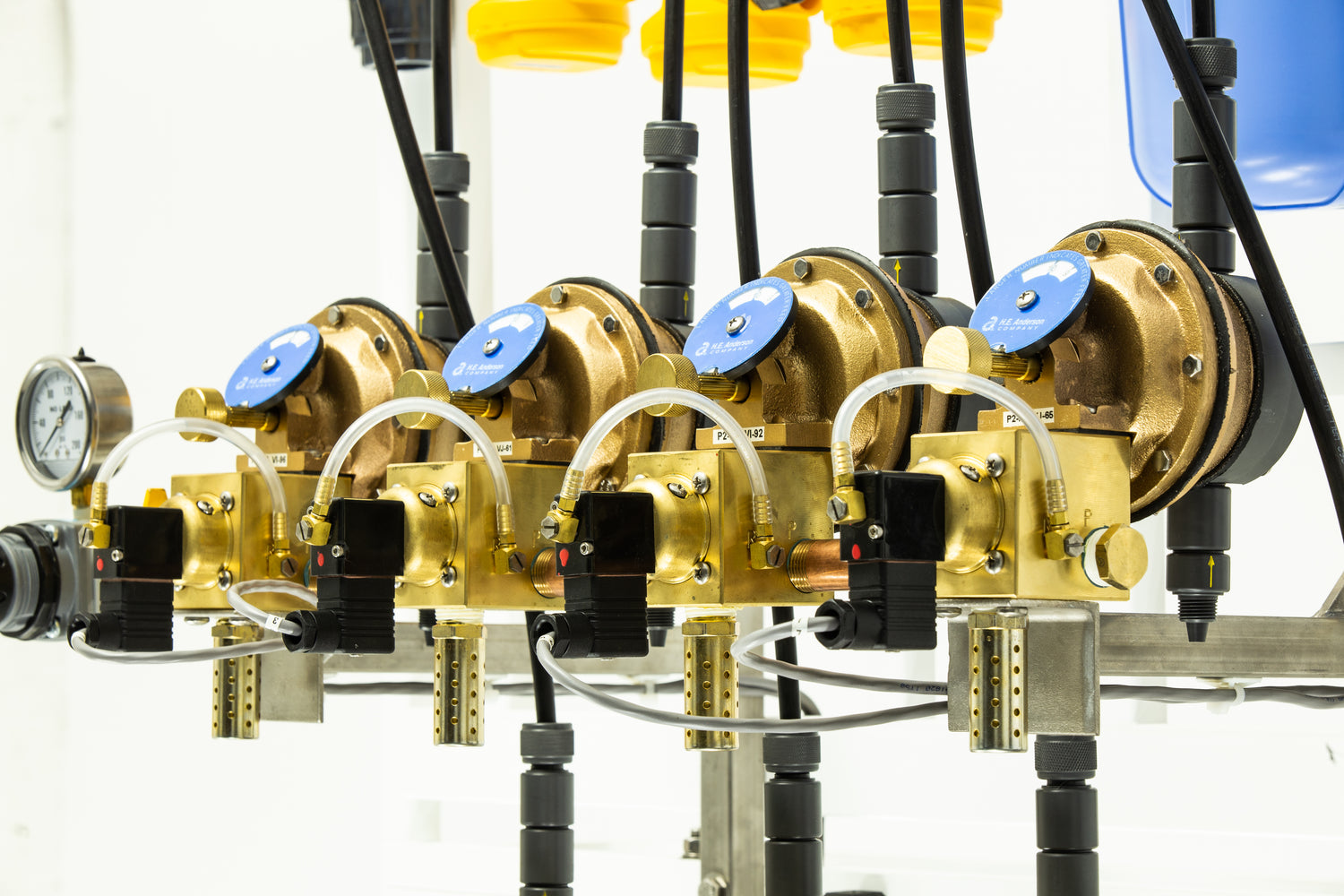

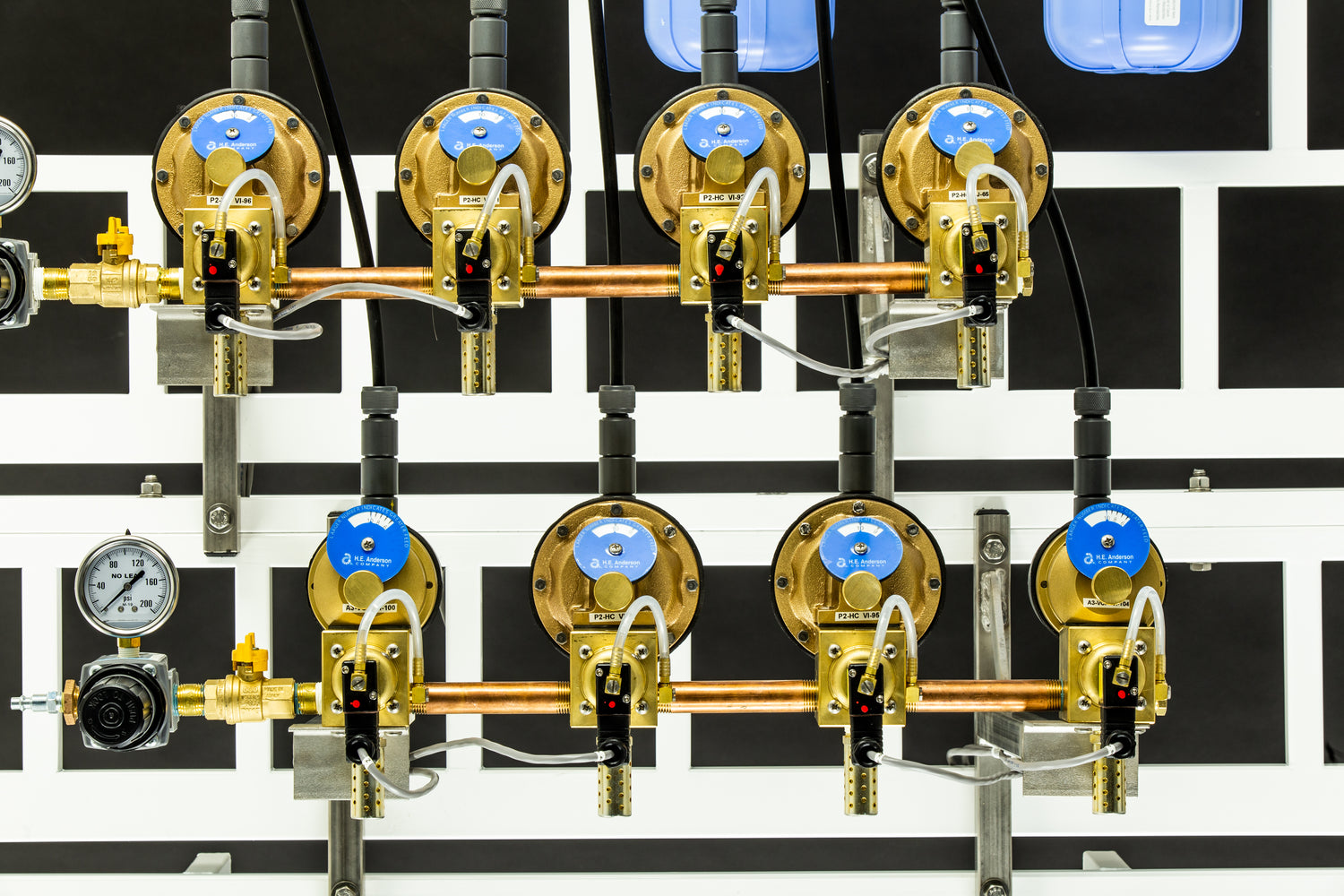

• H.E. Anderson Pumpers:
• Air compressor rated for at least 1 CFM pumper required for operation.
• Air pressure range: 35-80PSIG (2.413-5.515 bar)
• Water
• Water pressure range: 20-80PSIG (1.379-5.515 bar)
• Flow rate range: 3-80+ GPM (11.4-302.8+ LPM). Flow range is dependent on pipe diameter and H.E. Anderson pumper models chosen.
• pH Measurement range: 0-14pH
• TDS Measurement range: 0-10 EC (0-5000 PPM)
