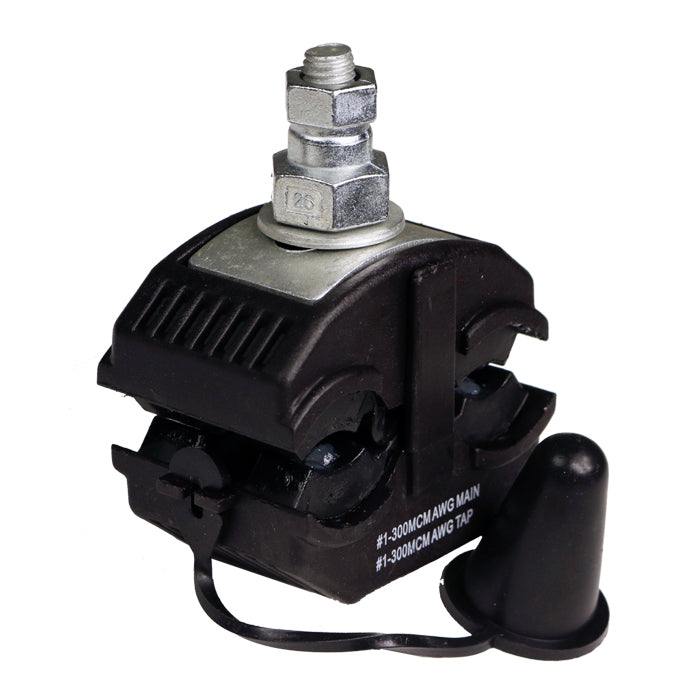

Large Electrical Wire Tap

Large electrical tab accepts 2/0 to 6/0 wire on the TAP side & 1/0 to 300MCM wire on the MAIN side.

• Main Line: #1 - 300 MCM
• Tap Line: #1 - 300 MCM
• Nominal Current: 316 amps
• Size: 50 x 16 x 100 mm
• Weight: 219 grams
• Puncture Depth: 1.5 - 2.5 mm
